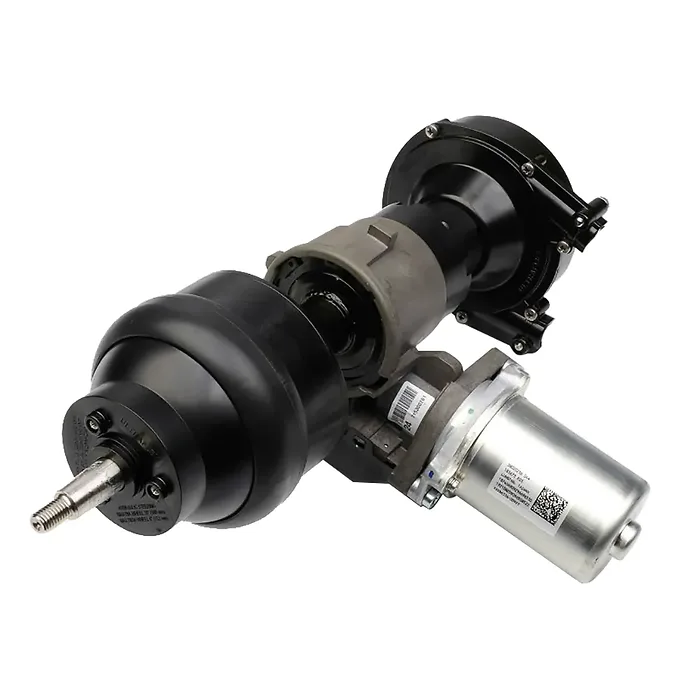

NaviTech™ Electronic Power Steering System

Experience cutting-edge steering technology designed for optimal performance on the water. The NaviTech™ Electronic Power Steering System integrates advanced automotive technology to bring improved handling and responsiveness to your boat.

This state-of-the-art system utilizes Electronic Power Steering (EPS) like that found in high-performing vehicles, paired with efficient steering components for unmatched precision. It operates silently, minimizing power draw while ensuring easy installation for any boat owner.

The NaviTech™ system features Integrated System Monitoring (ISM) that tracks operational metrics, providing diagnostic feedback directly through the steering wheel. Should the cable need replacement, the system alerts you with a vibration signal, enhancing safety and reliability.

Customizable for the needs of boat builders, Ultraflex can program steering outputs and hand wheel efforts to meet specific performance criteria.

Components Included:

• Power assisted steering helm: T91NAV - 43207S (single cable steering helm)
• Tilt mechanism: X66 - 40613M (for tilt mount helms, 48° tilt range with five locking positions)
• Steering cable: M90 Nav (patented)
• Compatibility: M90 Nav steering cable works with T71FC, T72FC, T73NRFC, T81FC, T82FC, T83NRFC, T91, T93ZT, T101, T103ZT. Note that M66 does not fit T91, T93ZT, T101, T103ZT models.
• Optional steering wheel

Key Features:

• Automotive-style steering effort and feedback
• Perfectly balanced steering from port to starboard
• Whisper-quiet operation
• Smart monitoring with cycle counts to signal cable replacements
• Haptic feedback alerts for anomalies, including:
• Excessive cable load
• Stuck cable alerts
• Field-tested reliability for over three years
• Assist torque capability of 16 Nm
• Tunable torque effort at center and end travel
• Consistent steering assistance across all vessel speeds
• Proven automotive integration since 2011, with over 1 million units produced annually
• Operating voltage: 10 - 15 VDC
• Nominal current: 8 - 15 A during maneuvers
• Includes 10 ft electrical harness; requires a 40 A fuse (sold separately)
• Certified for marine applications under CE, ABYC P17, P27, and ISO 25197
• NMMA Type Acceptance completed

Application Limitations:

• Suitable for outboard engines up to 150 hp, maximum speed of 50 mph, and no jack plates.
