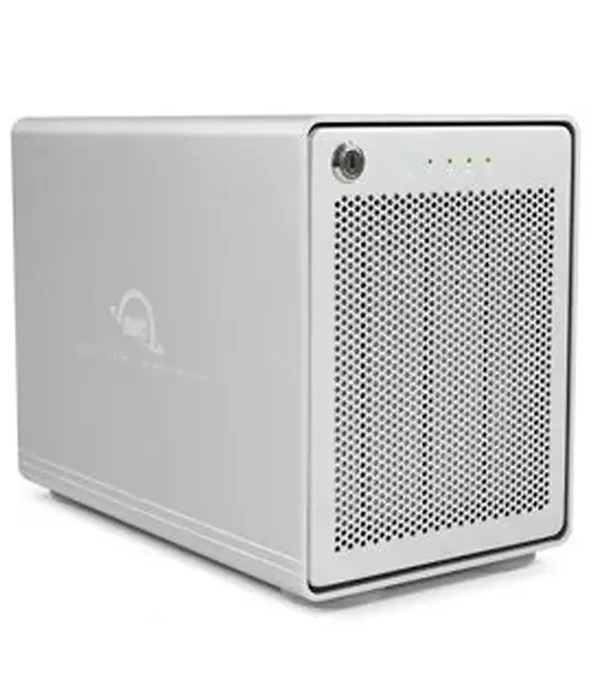

Add the power of RAID and USB 3.1 Gen 2 Type-C to your compatible Windows or Mac system with the Mercury Elite Pro Quad 4-Bay USB 3.1 Gen 2 Type-C RAID Enclosure from OWC / Other World Computing. Also compatible with Thunderbolt 3 and driven via included SoftRAID XT software, this enclosure has been built with four SATA III drive bays that can each house a single 3.5" or 2.5" drive using included drive brackets. Available RAID modes include RAID 0, 1 0+1, 4, and 5, each of which offers performance, data redundancy, or a combination of both. For those who do not require a RAID, JBOD is also supported, which allows the four drives to be used independently.

• Hot Swap Support: Yes
• Chipset: USB 3.1 Gen 2: (1) Via Labs VLI-822; SATA: (4) ASMedia ASM-235CM
• Certifications: CE; FCC
• Data Transfer Rate (Maximum): USB 3.2 Gen 2 : Up to 10 Gb/s (or 1250 MB/s)
• Plug and Play: Yes
• Reach Certification: Yes
• RAID Capable: Yes
• RAID Levels Supported: RAID 0; RAID 1; JBOD; RAID 4; RAID 5; RAID 0+1
• RAID Features: Software RAID
• MTBF (Mean Time Between Failures): Varies depending on drive mechanism installed
• Mac OS Compatibility: macOS 10.14 Mojave; macOS 10.13 High Sierra; macOS 10.12 Sierra; OS X 10.11 El Capitan; OS X 10.10 Yosemite; OS X 10.9 Mavericks; Mac OS X 10.8 Mountain Lion; Mac OS X 10.7 Lion; Mac OS X 10.6 Snow Leopard; macOS 10.15 Catalina; macOS 11.x Big Sur; macOS 12.x Monterey; macOS 13.x Ventura
• PC OS Compatibility: Windows 7 32-bit Edition; Windows 7 64-bit Edition; Windows Home Server 2011; Windows 8 32-bit Edition; Windows 8 64-bit Edition; Windows 8.1 32-bit Edition; Windows 8.1 64-bit Edition; Windows Server 2012; Windows 10 32-bit Edition; Windows 10 64-bit Edition; Windows Server 2016; Windows 11
• Other Requirements: SoftRAID is compatible with Windows 10, or macOS 10.12 or later. Apple Silicon M1 Macs require macOS 11.3 or later. SoftRAID is licensed per computer. Additional seats available.
• Host Port Requirements: USB (USB-C or USB-A1) or Thunderbolt (USB-C) port
• Power Supply: Internal UL-listed universal auto-switching power supply
• AC Input: 100-240V, 50-60Hz
• DC Output: +12V, 10A
• Wattage: 120W
• Number of Bays: 4
• Device Ports: (1) Host Port - USB 3.2 Gen 2 Type-C up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible
• Cooling: (1) 92mm Temperature-controlled cooling fan
• Security Slot: Yes
• Power Button: Yes
• Power/Activity LED: Yes
• Housing Color: 0
• Housing Material: Aluminum
• Dimensions: Height: 18.5 cm (7.3 in); Length: 24.0 cm (9.4 in); Width: 13.5 cm (5.3 in)
• Weight: 3.6 kg (7.94 lbs)
• Ambient Temperature: Operating: 32rF to 104rF (0rC to 40rC); Non-Operating: -4rF to 158rF (-20rC to 70rC)
• Altitude: Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft); Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)

Product Tags

OWC MERCURY ELITE PRO QUAD 0TB USB-C 10GB/S RAID STORAGE ENCLOSURE WITH SOFTRAID
