The Tripp Lite PDUMH20 1.92 kiloWatt Single Phase 120-Volt 1U Metered PDU offers real-time local reporting of load level in amps via built-in digital meter. This power distribution unit also enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. It offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High-quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
OVERVIEW
Model Type :Metered
PDU Type :Metered

OUTPUT
Frequency compatibility :50 / 60 Hz
Output nominal voltage :120V
Overload protection :20A

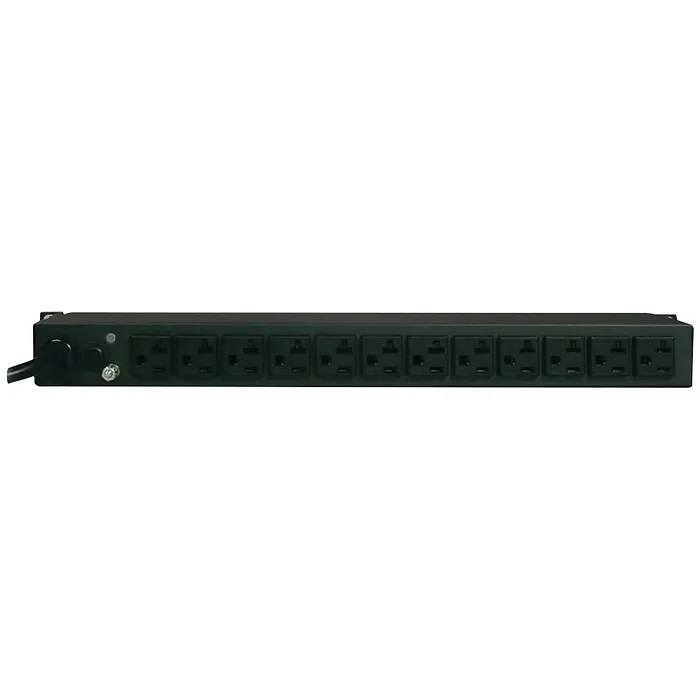

Outlet quantity / type :12 NEMA 5-15/20R INPUT
PDU Input Voltage :100 120 127
Recommended Electrical Service :120V
Maximum Input Amps (A) :20
Input connection type :NEMA L5-20P with NEMA 5-20P plug adapter
Plug Type :NEMA L5-20P (20A 120V)
PDU Plug Type :NEMA 5-20P NEMA L5-20P
Input cord length (ft.) :15
Voltage compatibility (VAC) :120
Phase :Single-Phase LEDS ALARMS and SWITCHES
Front panel LEDs :Digital LED current meter

PHYSICAL
Material of construction :Sheet Metal
Style :Rackmount, Vertical Rackmount, Wallmount/Under-Counter
Form factors supported :1U rackmount, 0U vertical rackmount, wall-mount, and under-counter installation
PDU Form Factor :Horizontal (1U, 2U, etc) SPECIAL FEATURES
Appearance :All black color scheme
TVSS grounding :Rear grounding lug

CERTIFICATIONS
Certifications :Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada), RoHS Compliant Item Dimension (L"xW"xH"):
10 x 20.5 x 2.25

Weight:
3.60 lb

Warranty Information
Lifetime
