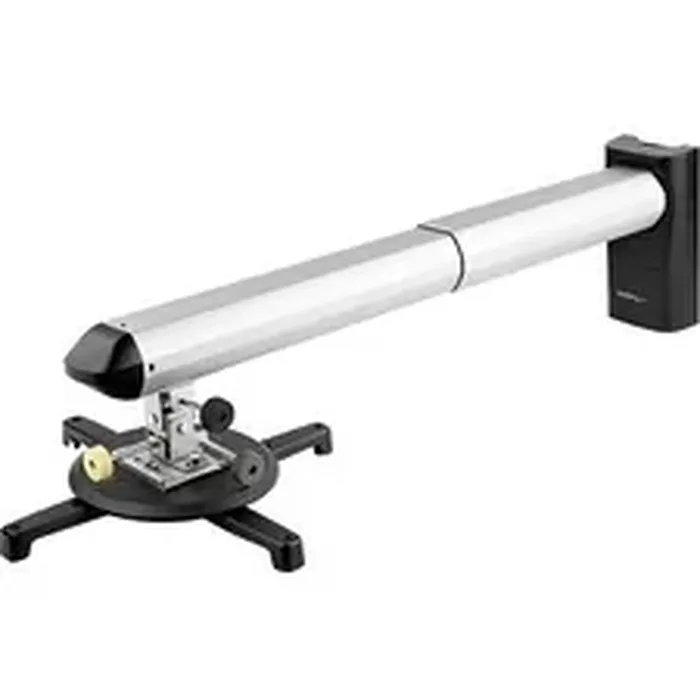

The STARTECH PROJWALLMNT is a universal wall mount designed for short and ultra-short throw projectors. This mount allows for the creation of large images from a short distance, positioning the projector out of the way in various environments. It is suitable for use in classrooms, boardrooms, hospitality venues, and other meeting spaces where space optimization is critical. The mount features a telescopic arm that extends the projector from 16.5 to 27.7 inches from the wall, accommodating diverse installation requirements. It supports projectors with 3 or 4 mounting hole patterns, up to 12.8 inches in diameter, and can hold a maximum load of 33 pounds (15 kg). Adjustability includes +5/-5 degree arm tilt, 360-degree swivel, and +/- 25-degree horizontal/vertical tilt via a lockable ball joint, enabling precise image alignment. Constructed from steel, aluminum, and plastic, this heavy-duty mount offers a practical solution for secure projector installation.

• Manufacturer: StarTech.com
• Manufacturer Part Number: PROJWALLMNT
• Manufacturer Website Address: http://www.startech.com
• Brand Name: StarTech.com
• Product Name: Projector Wall Mount - Universal - Short Throw
• Marketing Information: The adjustable mount for short throw projectors helps you create a large image from a short distance and keeps your projector out of the way. It's ideal for classrooms, boardrooms, hospitality venues, and many other meeting spaces. Wide Compatibility with Short Throw Projectors
• Supporting a wide range of projector brands, the short throw projector wall mount features a universal mounting pattern of 12.8"" (325 mm) diameter and supports a weight capacity of 33.3 lb. (15 kg).
• Adjust the distance of your projector from the wall using the telescopic arm, which extends from 16.5" to 27.7" (420 mm to 705 mm). The arm on the low-profile projector wall mount also tilts +5/- 5 degrees to help you find the ideal position. The lockable ball joint on the adjustable projector mount provides 360-degree swivel, +/- 25 degree horizontal / vertical tilt.
• StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
• PROJWALLMNT is backed by a StarTech.com 2-year warranty and free, lifetime technical support
• Product Type: Wall Mount
• Device Supported: Projector
• Maximum Load Capacity: 33 lb
• Features:
• Adjustable
• Tilt
• Swivel
• Rotate
• Extendable Arm
• Heavy Duty
• Cable Management
• Physical Characteristics: Product Material:
• Steel
• Aluminum
• Plastic
• Height: 7.7"
• Width: 7.1"
• Length: 28.9"
• Weight (Approximate): 7.50 lb
• Miscellaneous: Package Contents:
• Wall Bracket
• Projector Pole
• Upper, Decorative Wall Cover
• Lower, Decorative Wall Cover
• Adjustment Module
• Right, Adjustment Module Cover
• Left, Adjustment Module Cover
• Pole End Cap
• Wall Anchors
• M3 x 24 mm Screws
• M4 x 24 mm Screws
• M5 x 24 mm Screws
• M6 x 24 mm Screws
• M6 x 8 mm Hex Screws
• M6 x 25 mm Hex Screw
• Nuts
• User Manual
• M6 x 10 mm Screws
• Wrench (10mm)
• Mounting Screws
• Washers
• Mounting Arm Covers
• Hinge Connector
• 5 mm Hex Key
• Mounting Arms
• Environmentally Friendly: Yes
• Environmental Certification: RoHS
• Country of Origin: Taiwan
• Limited Warranty: 2 Year

Product Tags

Universal Projector Wall Mount - Short/Ultra Short Throw - Adjustable 16.5-27.7" From Wall - 33lb (15kg) - Tilt/Swivel/Rotate - Universal projector wall mount kit (short/ultra-short throw) supports up to 33lb - Dials for precise adjustability | Projector mount with extendable arm (16.5 to 27.7in from wall) - For projectors w/ 3 or 4 mounting hole patterns (up to 12.8in dia.)
