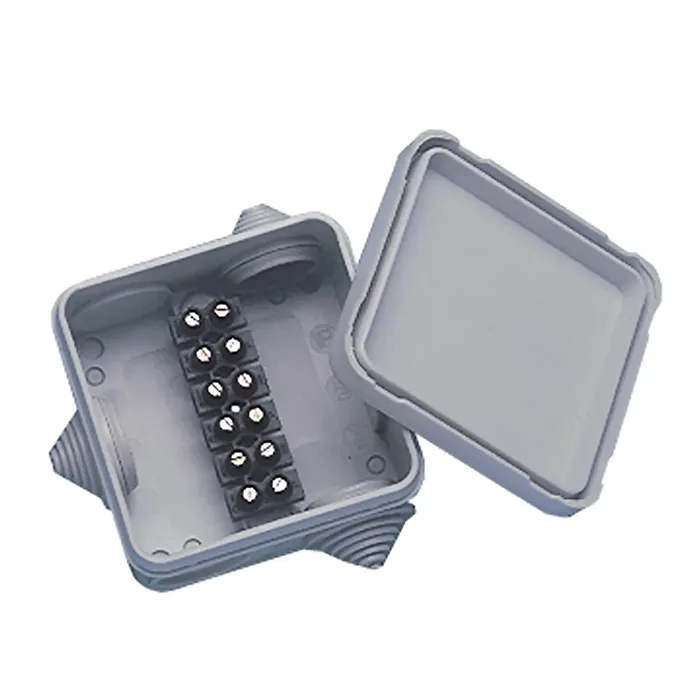

Newmar PX-1 Waterproof Junction Box

This durable and waterproof junction box is designed for making reliable wiring connections, whether above or below decks, and is specifically crafted to withstand areas that may encounter occasional spray.

Innovative Connector Strips

The junction box comes equipped with molded nylon connector strips that securely clamp wires using screw compression without the need for lugs, making them ideal for electronic installations. The brass barrels effectively hold wires in place with a stainless steel ‘finger’ that is compressed by a screw, ensuring wires are protected from cuts and breakage, thus meeting ABYC standards.

Outstanding Features:

• Constructed from rugged, high-impact polypropylene for non-corrosive durability
• Snap-on cover ensures a watertight seal
• Universal cut-to-fit cable entries accommodate a diverse range of cable sizes
• Multiple position connector strips with captive screw compression terminals included
• Various knockouts provided for additional conduit access
• IEC Waterproof Rating: IP55 – safe from water projected in jets against the enclosure

• One connector strip with six positions
• Maximum wire gauge compatibility of 16
• Five cable entry ports for versatile installation
• Three cable entries installed, plus two spares
• Accommodates cable diameters ranging from 0.14 to 0.81 inches (3.5 to 20.5 mm)
• Dimensions: 2.95 x 2.95 x 1.66 inches (7.5 x 7.5 x 4.2 cm)
