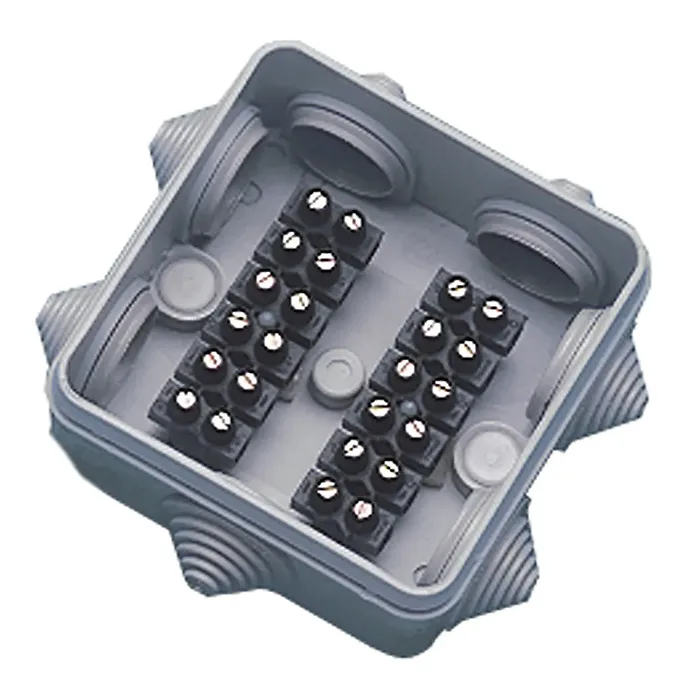

PX-2 Waterproof Junction Box

This durable and waterproof junction box is specifically designed for reliable wiring connections above or below decks in marine environments, making it suitable for areas exposed to occasional spray.

Advanced Connector Strips

Featuring molded nylon connector strips that employ screw compression to firmly secure wires without the need for lugs, this junction box is ideal for various electronic installations. The brass barrels effectively capture wires while being protected from cuts and breakage by the stainless steel 'finger' mechanism, ensuring compliance with ABYC standards.

Key Features:

• Constructed from rugged, non-corrosive, high-impact polypropylene for enhanced durability.
• Equipped with a snap-on cover that provides a watertight seal.
• Features 'universal' cut-to-fit graduated diameter cable entries compatible with a wide range of cables.
• Includes multiple position connector strips with 'captive' screw compression wire terminals for easy installation.
• Provides multiple knockouts for conduit access beyond cable entries.
• IEC Waterproof Rating: IP55 – effective against water projected in jets from any direction.

Specifications:

• Connector Strips: 2
• Positions per Strip: 6
• Maximum Wire Gauge: 16
• Cable Entry Ports: 7
• Cable Entries Installed: 7
• Spare Cable Entries Provided: 0
• Cable Diameter Range (inches): 0.14 – 0.81
• Cable Diameter Range (mm): 3.5 – 20.5
• Box Dimensions (inches): 3.35 x 3.35 x 1.66
• Box Dimensions (cm): 8.5 x 8.5 x 4.2

• Rugged, high-impact polypropylene construction
• Watertight snap-on cover
• Cut-to-fit cable entries for versatility
• Captive screw compression wire terminals
• Multiple access knockouts
• Meets IPC waterproof standards
