PX-3 Waterproof Junction Box

This robust and waterproof junction box is designed for making reliable wiring connections in both above and below deck applications, even in conditions that may experience occasional spray.

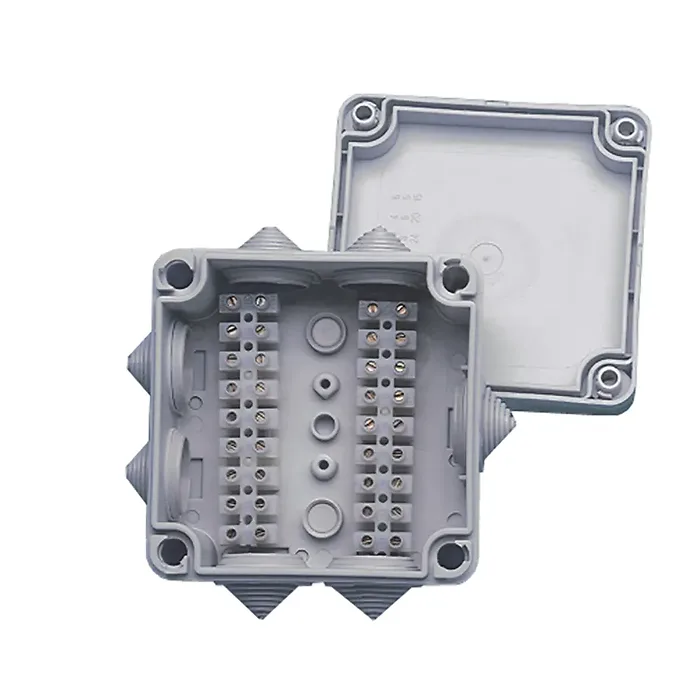

Connector Strips Installed in the Box

Molded nylon encases a pair of connector strips that secure wires through screw compression, eliminating the need for lugs. This design is ideal for electronic installations, with brass barrels capturing the wires and held in place with a stainless steel 'finger' compressed by a screw. Importantly, the screw never touches the wires, safeguarding the copper strands from damage while meeting ABYC standards.

Key Features:

• Constructed from rugged, non-corrosive, high-impact polypropylene, similar to BX Series junction boxes
• The snap-on cover ensures a watertight seal to protect connections
• 'Universal' cut-to-fit graduated diameter cable entries accommodate a wide variety of cable sizes
• Includes multiple-position connector strips with 'captive' screw compression wire terminals
• Features multiple knockouts for additional conduit access alongside the cable entries
• IEC Waterproof Rating: IP55 - ensuring no harmful effects from water projected in jets against the enclosure

• Number of Connector Strips: 2
• Positions per Strip: 9
• Max Wire Gauge: 16
• Number of Cable Entry Ports: 7
• Cable Diameter Range: 0.14 – 0.99 inches (3.5 – 25.5 mm)
• Box Size: 4.45 x 4.45 x 2.29 inches (11.3 x 11.3 x 5.8 cm)
