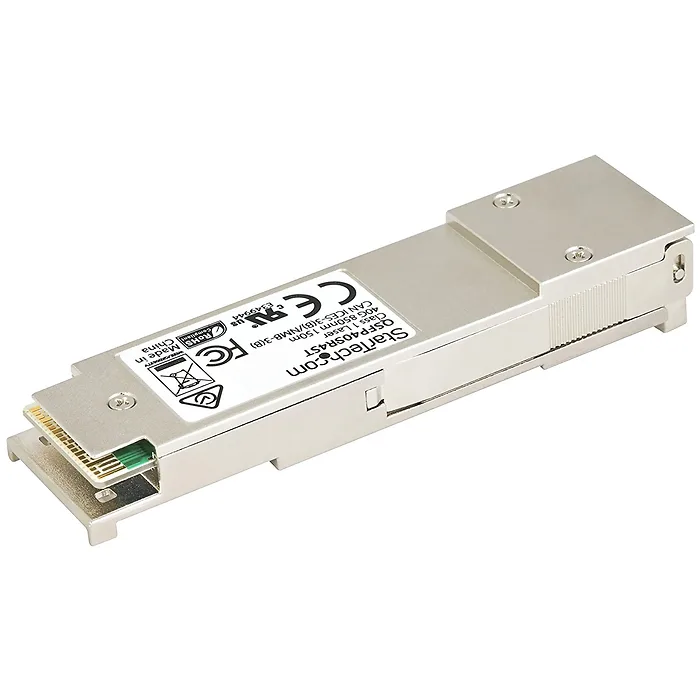

This 40GBase-SR4 QSFP+ module delivers what you need most in your network connections: reliable performance. It?s built to exacting MSA specifications and fully tested to ensure seamless compatibility. The multimode QSFP+ transceiver module offers a cost-effective way to add, replace or upgrade the ports on your networking equipment, and it?s backed by a lifetime warranty.
General Information
Manufacturer:StarTech.com
Manufacturer Part Number:QSFP40SR4ST
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:MSA Compliant QSFP+ Transceiver Module - 40GBASE-SR4
Marketing Information:The QSFP40SR4ST is an MSA compliant fiber QSFP+ transceiver that's designed, programmed and tested to work with 40GBASE-SR4 compatible MSA switches and routers. The QSFP+ transceiver module supports a maximum distance of up to 150 m (492 ft) and delivers dependable 40 GbE connectivity over fiber cabling.
Technical Specifications: - Wavelength: 850 nm
- Maximum Data Transfer Rate: 40 Gbps
- Type: Multi Mode Fiber
- Connection Type: MPO Connector
- Maximum Transfer Distance: 150 m (492 ft)
- MTBF: 1,489,426 hours
- Power Consumption: Less than 0.7 Watts
- DDM: Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
Packaged Quantity:1
Product Type:QSFP+
Technical Information
Application/Usage:
- Optical Network
- Data Networking
Interfaces/Ports
Total Number of Ports:1
Connector Type:MPO
Interfaces/Ports Details:1 x MPO Duplex 40GBase-SR4 Network
Media & Performance
Media Type Supported:Optical Fiber
Fiber Mode Supported:Multi-mode
Ethernet Technology:40 Gigabit Ethernet
Network Technology:40GBase-SR4
Physical Characteristics
Form Factor:Hot-swappable
Height:0.5"
Width:0.7"
Depth:2.8"
Weight (Approximate):0.07 lb
Miscellaneous
Compatibility:MSA Compliant
Environmentally Friendly:Yes
Environmental Certification:
Country of Origin:China
Warranty
Limited Warranty:Lifetime
