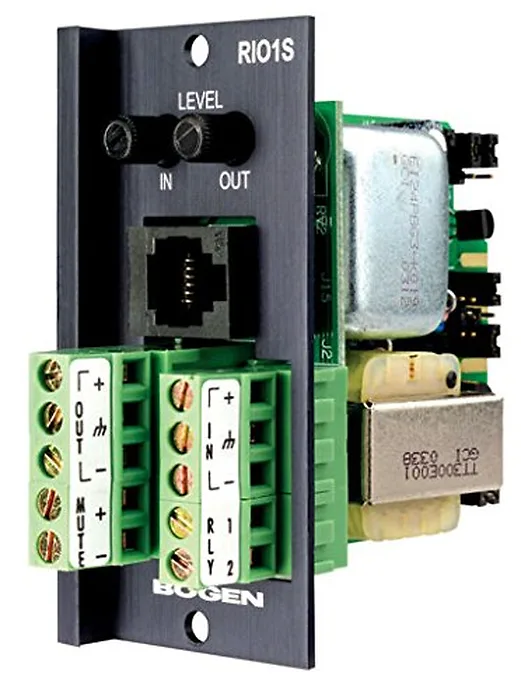

The Advanced Relay Input/Output Control Module enhances audio signal routing by automatically integrating into the mix bus signal path leading to the power amplifier stage when installed. This sophisticated device is ideal for professional audio setups that require reliable signal management and priority control.

Key features include transformer-isolated balanced line-level input, selectable input impedance options, output level control, and versatile relay response based on user-defined priority. The module offers external control for priority muting, and can effectively manage high-priority signals with a smooth fade back.

• Transformer-isolated balanced line-level input
• Jumper selectable input impedance: 600-ohm or 10k
• 8-ohm 750mW output capability
• Input and output level controls for precise adjustment
• Selectable priority level for relay response
• External control of priority muting
• N.O. or N.C. relay contacts for flexible usage
• Input mute functionality for high priority modules with fade back
• Output can gate relay based on priority level
• Screw terminal strips for easy wiring
• RJ11 connection for line output dedicated N.O. relay contact
