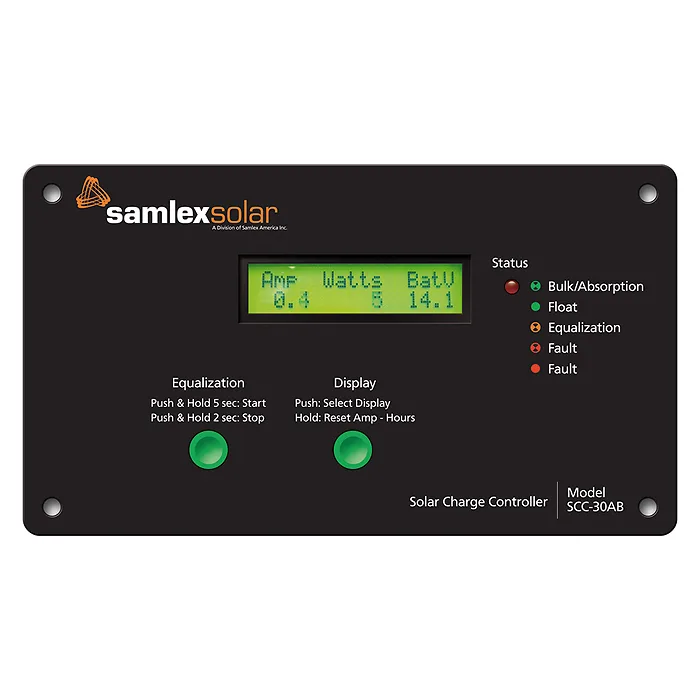

30A Flush Mount Solar Charge Controller with LCD Display

This 30 Amp Flush Mount Solar Charge Controller effectively regulates current to protect your batteries from over-charging. Featuring a user-friendly interface with LED status indicators and a digital LCD monitor, this unit is equipped with 8 optimized charging profiles suitable for various battery types. Enhance your charging experience with temperature compensation using the optional DC-BTS-A-C Battery Temperature Sensor.

Key Features:

• Efficient Pulse Width Modulated (PWM) charging technology
• 4-stage battery charging process: Bulk, Absorption, Float, and manual/automatic Equalization
• 8 selectable battery charging profiles for simplified configuration
• Temperature compensated charging available with optional sensor
• Digital LCD Monitor displays operational parameters and fault messages

Specifications:

• Input Voltage: 12V / 24V
• Max Current: 30 Amp
• Weight: 0.8 lbs (0.36 kg)
• Dimensions: 7.5 x 4.25 x 1.5 inches (19.1 x 10.8 x 3.8 cm)
• Warranty: 5 Year Limited

Applications:

• Recreational vehicles
• Service vehicles
• Marine applications
• Fieldwork
• Telecommunications
• Mobile offices
• Construction sites

WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.

• Pulse Width Modulated (PWM) charging for optimal battery performance
• 4-stage charging prevents battery damage
• 8 user-selectable charging profiles
• Optional temperature compensation for better efficiency
• Clear digital display for monitoring
