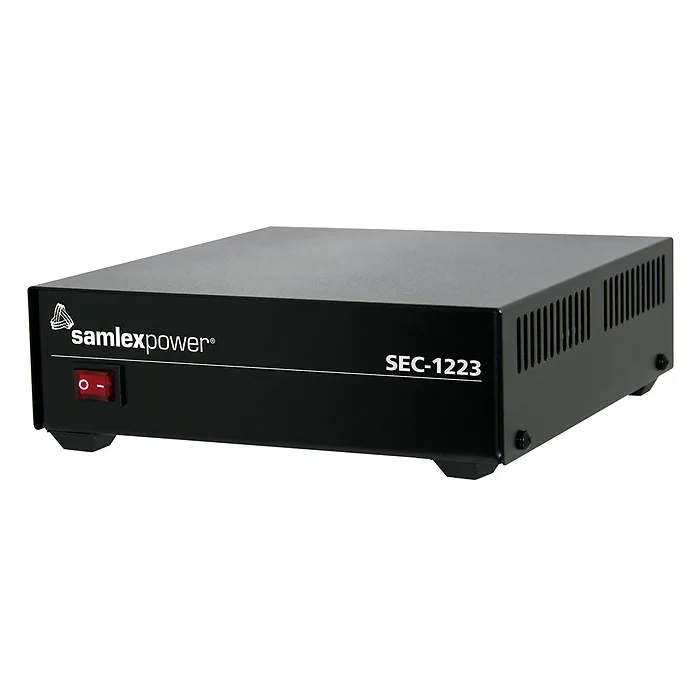

Samlex SEC-1223 AC-DC Power Supply

The SEC-1223 is a high-efficiency AC-DC power converter designed for critical applications requiring stable electricity. With a reliable output of 13.8 Volts at 23 Amps, it operates on a 120 Volt AC input (60 Hz). This power supply is particularly suited for land mobile radio applications, providing clean power with minimal noise interference (RFI).

Key Features:

• Detachable power supply cord with NEMA 5-15P plug.
• Advanced switch-mode design for efficiency.
• Built-in protections against over-current, short-circuit, and over-voltage.
• Input voltage can be configured at 120VAC or 240VAC via an internal jumper.
• Meets UL and FCC safety standards for reliability.

Specifications:

• Input Voltage: 100-130 VAC
• Output Voltage: 13.8 VDC
• Current Output: 23 Amps
• Fuse Rating: 6.3 Amps
• Weight: 3.5 lbs (1.6 kg)
• Dimensions: 7.28 x 8.19 x 2.40 in (18.5 x 20.8 x 6.1 cm)
• Safety Certification: UL, FCC

Applications:

• Two-way radio base stations
• Communication systems
• Security systems
• Test equipment
• Plotters
• GPS receivers
• Automotive & Marine displays
• DC computers
• 12 Volt lighting systems
• OEM applications

• High-efficiency design for dependable operation.
• Compact and lightweight for easy installation.
• Minimized output voltage ripple and RFI for cleaner power.
• Versatile input voltage options for global use.
• Safety compliance ensures peace of mind.
