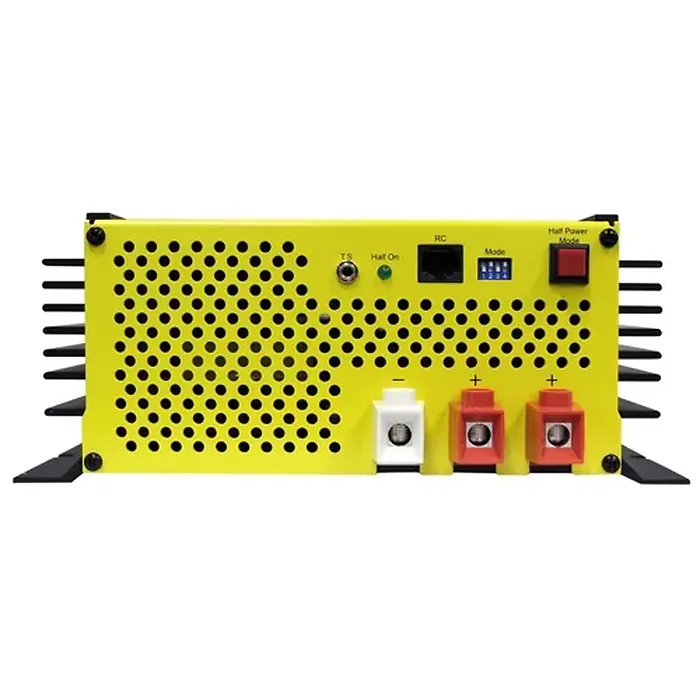

25A 24V Dual-Bank Battery Charger - 3-Stage with Temperature Sensor

This advanced fully automatic three-stage battery charger is designed for charging various types of 24 Volt lead-acid batteries including Flooded, AGM, and Gel Cell. It operates on either a 120 V, 60 Hz or 230 V, 50 Hz AC source. With a user-configurable DIP switch, it can switch to a two-stage algorithm for batteries connected to a DC load (DC UPS). This unit also functions as a DC Power Supply and features protection against overload, short circuits, reverse polarity, and thermal issues. It allows charging of up to two separate battery banks simultaneously.

Applications:

• Ideal for automotive, marine, communications sites, and test benches
• Perfect for battery back-up systems and hobby projects

• High efficiency switch mode technology for quiet operation
• Fully automatic charging for all lead-acid battery types
• Simultaneous charging of two banks without an isolator
• Can operate as a power supply or DC UPS with a battery
• User configurable AC input of 120 or 230 VAC
• Select between 2 or 3-stage charging with a DIP switch
• Half Power Mode to safely charge lower capacity batteries
• Integrated voltmeter and ammeter for monitoring
• Fan-cooled operation based on output current
• Comprehensive protection features including short circuit and overload
• Temperature sensor included to prevent under/overcharging
