This SmartPro(R) line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The SMART1500LCD is ideal protection for small business networks, VoIP systems, point-of-sale applications, desktop workstations, home offices and home theater systems.

• UPC Code: 037332126146
• UPS Type: Line-Interactive
• Input Phase: Single-Phase
• Rated input current (Maximum Load): 8.6A
• Nominal Input Voltage(s) Supported: 120V AC
• UPS Input Connection Type: 5-15P; Right-Angled
• Input Circuit Breakers: 10A
• UPS Input Cord Length (ft.): 6
• Recommended Electrical Service: 15A 120V
• Output Capacity (VA): 1500
• Output Capacity (kVA): 1.5
• Output Capacity (Watts): 900
• Output Capacity (kW): 0.9
• Power Factor: 0.6
• Nominal Voltage Details: 115v nominal output in battery mode
• Frequency Compatibility: 60 Hz
• Output Voltage Regulation (Line Mode): -18%, +8%
• Output Voltage Regulation (Battery Mode): 115V (+/- 5%)
• Output AC Waveform (AC Mode): Sine wave
• Output AC Waveform (Battery Mode): PWM sine wave
• Nominal Output Voltage(s) Supported: 110V; 115V; 120V

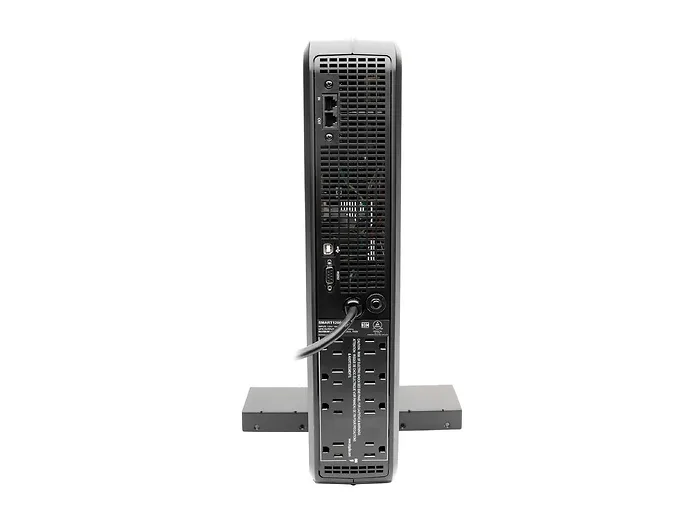

• Output Receptacles: (8) 5-15R
• Battery Type: Valve Regulated Lead Acid (VRLA)
• Runtime Full Load (min.): 4.4 min. (900W)
• Runtime Half Load (min.): 11.8 min. (450W)
• DC System Voltage (VDC): 24
• Battery Recharge Rate (Included Batteries): Less than 4.5 hours from 10% to 90%
• Battery Access: Battery Access Door
• Internal UPS Replacement Battery Cartridge: RBC1500
• Battery Replacement Description: IMPORTANT BATTERY REPLACEMENT INFORMATION > If your SMART1500LCD UPS has no battery replacement door, please contact a local electronics repair technician to source and install a matching replacement battery; If your SMART1500LCD UPS is equipped with a battery access door, please order Tripp Lite RBC1500 (quantity 1) replacement battery cartridge
• Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 75 to 147
• Overvoltage Correction: Input voltages between 128 and 147 are reduced by 12%
• Undervoltage Correction: Input voltages between 93 and 107 are boosted by 14%
• Severe Undervoltage Correction: Input voltages between 75 and 92 are boosted by 30%
• Front Panel LCD Display: Backlighted LCD screen offers detailed UPS status information, configuration options and Error message reporting; STATUS INFORMATION includes Input Voltage, Output Voltage, Estimated Runtime (minutes), Output Load Percentage, Output Load Wattage, Battery Charge Percentage, Graphical 5-Bar Battery Charge Level and UPS Operating Mode Display / CONFIGURATION OPTIONS include Power Sensitivity, LCD Status Information Scrolling, Alarm Disable, LCD Brightness and Self Test / REPORTED ERROR MESSAGES include Replace-Battery and Overload conditions; LCD Screen rotates for vertical or horizontal UPS placement
• Switches: ON/OFF/MODE button provides UPS on/off power control (long-press) and advances the LCD screen display (short tap); MUTE/ENTER button provides temporary alarm cancel, plus selection and confirmation of on-screen configuration options
• Alarm Cancel Operation: Press the MUTE/ENTER button during a power failure to silence the alarm; Once silenced, alarm will re-sound to indicate low-battery status
• Audible Alarm: Audible alarm indicates power-failure and low-battery status; Alarm can be disabled entirely via front panel LCD interface (see manual)
• LED Indicators: Front panel LCD display
• UPS AC Suppression Joule Rating: 870
• UPS AC Suppression Response Time: Instantaneous
• UPS Dataline Suppression: 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
• UPS Dataline Suppression Details: 168 joules; Compatible with POE applications
• EMI / RFI AC Noise Suppression: Yes
• Primary Form Factor: Rackmount
• Rack Height: 2U
• Cooling Method: Fan
• Included Mounting Accessory Description: Included mounting brackets enable installation in 2 and 4 post racks, plus upright tower configurations; Set of 4 rubber-feet enable no-slip horizontal desktop placement
• Installation Form Factors Supported with Included Accessories: 2 post 19 inch rackmount; 2 post front mount; 4 post 19 inch rackmount; Tower
• Minimum Required Rack Depth (inches): 14
• Primary UPS Depth (mm): 267
• Primary UPS Height (mm): 89
• Primary UPS Width (mm): 438
• Shipping Dimensions (hwd / in.): 7.10 x 14.90 x 21.30
• Shipping Weight (lbs.): 31.90
• UPS Housing Material: ABS
• UPS Power Module Dimensions (hwd, in.): 3.5 x 17.25 x 10.5
• UPS Power Module Weight (kg): 13.61
• UPS Power Module Weight (lbs.): 30
• Unit Dimensions (hwd / in.): 3.500 x 17.250 x 10.500
• Unit Weight (lbs.): 30.0000
• Operating Temperature Range: 32? to 104?F (0? to 40?C)
• Storage Temperature Range: 5? to 122?F (-15? to 50?C)
• Relative Humidity: Up to 95%, non-condensing
• AC Mode BTU / Hr. (Full Load): 78
• AC Mode Efficiency Rating (100% Load): 98%
• Operating Elevation (ft.): 6562
• Operating Elevation (m): 2000
• Network Monitoring Port Description: Supports detailed monitoring of UPS and site power conditions; DB9 provides contact-closure notification of AC Present (pins 1,9 connected) and AC Fail (pins 1,8 connected)
• PowerAlert Software: For local monitoring via the UPS's built-in communication ports, download PowerAlert software at https://tripplite.eaton.com/products/power-alert
• Communications Cable: USB and DB9 Serial cabling included
• WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications
• Network Management Card Description: Network management not supported
• Communications Interface: Contact closure; DB9 Serial; USB (HID enabled)
• Transfer Time: 4 milliseconds (AC to battery mode); 1 millisecond (Battery to AC mode)
• Low Voltage Transfer to Battery Power (Setpoint): 75
• High Voltage Transfer to Battery Power (Setpoint): 147
• Cold Start (Startup in Battery Mode During a Power Failure)Cold-start operation supported
• High Availability UPS Features: Automatic Voltage Regulation (AVR); Hot swappable batteries; Surge/noise protection
• Green Energy-Saving Features: Greater than 95% efficiency - GREEN UPS
• UPS Applications: Home/Office Desktop; Audio/Video; High-End Desktop/Small Network; Retail/Point of Sale; Hospitality
• Product Certifications: CSA (Canada); NOM (Mexico); UL 1778
• Product Compliance: RoHS; FCC Part 15 Class B (USA)
• Product Warranty Period (U.S. & Canada): 3-year limited warranty
• Connected Equipment Insurance (U.S., Canada & Puerto Rico): $250,000 Ultimate Lifetime Insurance
