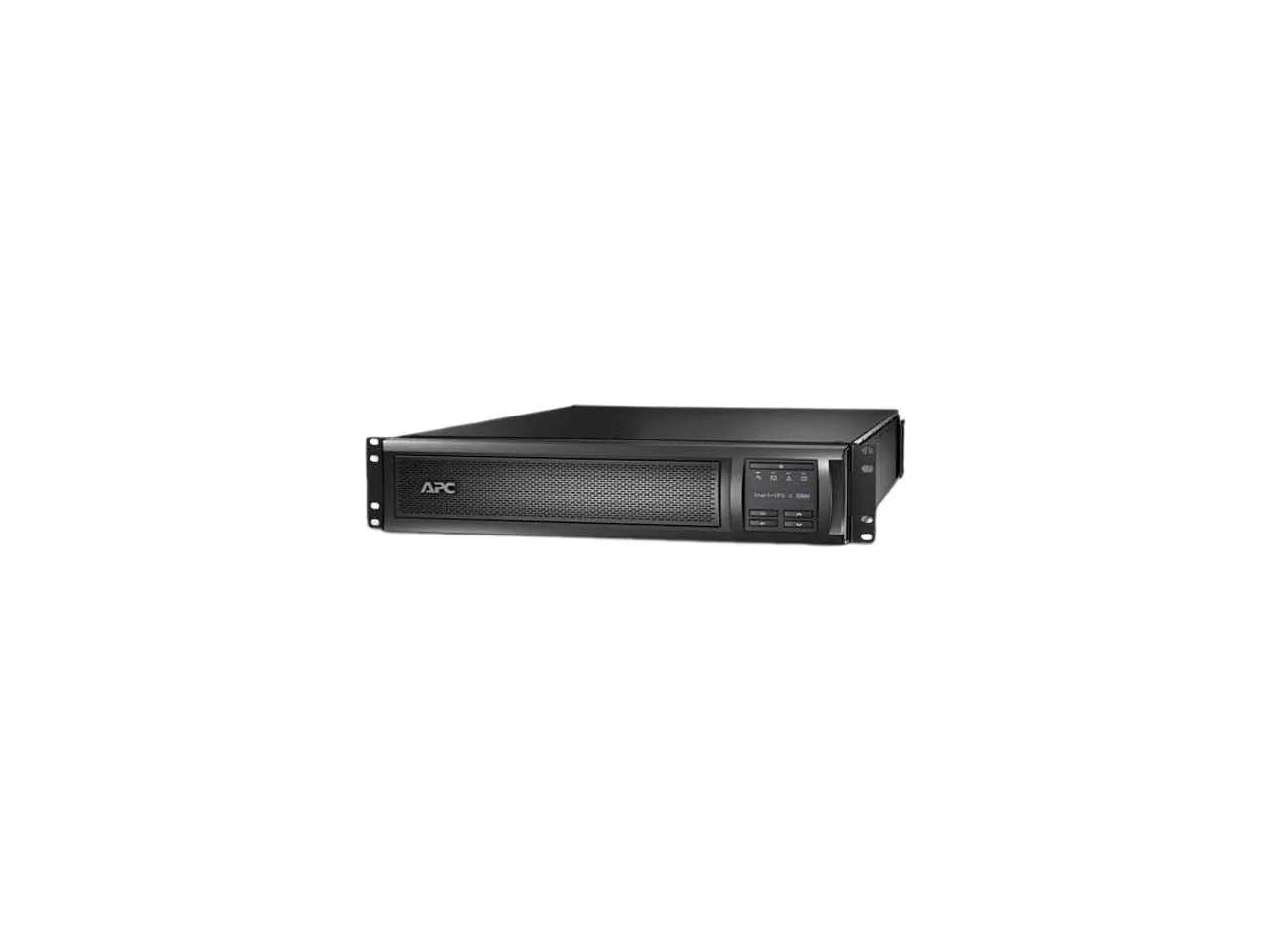

Keep your network functioning smoothly with this SMART UPS X 3000VA RT 100/127V L5-30P LCD. It features 10 outlets that all provide protection for your equipment from surges. This UPS with network card has smart battery management and Green Mode for optimum efficiency. The display is easy to read and the unit mounts on a tower or rack. The Schneider electric smart UPS uses pure sine wave output for best compatibility of your servers.
Output
Output Power Capacity
2700 Watts / 2880 VA
Max Configurable Power
2700 Watts / 2880 VA
Nominal Output Voltage
120V
Output Voltage Distortion
Less than 5%
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Topology
Line Interactive
Waveform Type
Sine wave

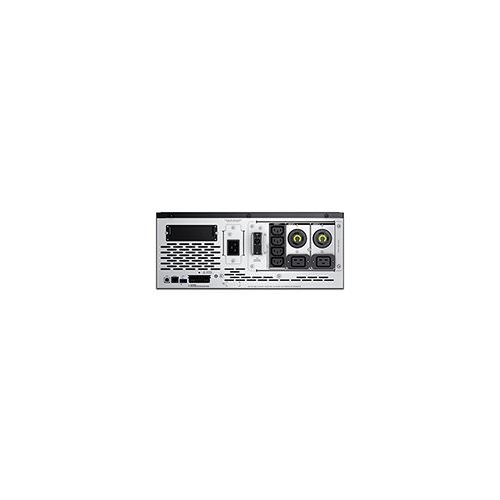

Output Connections
(6) NEMA 5-15R
(3) NEMA 5-20R
(1) NEMA L5-30R Input
Nominal Input Voltage
120V
Input Frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
NEMA L5-30P
Cord Length
2.44 meters
Input voltage range for main operations
70 - 153V
Transfer Time
2-4 ms Batteries Runtime
Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
3 hour(s)
Replacement Battery
APCRBC143
RBC Quantity
1
Extended Run Options
APC Smart-UPS X 3000VA Rack/Tower LCD 100-127V with Network Card Communications Management
Interface Port(s)
SmartSlot
Pre-Installed SmartSlot Cards
AP9631
Control panel
LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)
Yes Surge Protection and Filtering
Surge energy rating
540 Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Data Line Protection
-- Conformance
Regulatory Approvals
BSMI, CSA, EN 50091-2, EN 55022 Class A, ENERGY STAR (USA), FCC Part 15 Class A, NOM, TUV, UL 1778, VCCI Class A Sustainable Offer Status
RoHS
Compliant
REACH
REACH: Contains No SVHCs
Battery Directive
Compliant
Battery Notes
Contains Lithium Coin Cell Weight
105.00
Item Dimension
24.94 x 23.06 x 13.00
Warranty Information
3 Years Repair or Replace (Excluding Battery) and 2 Years for Battery Optional Extended Warranties Available, Optional On-Site Warranties Available
