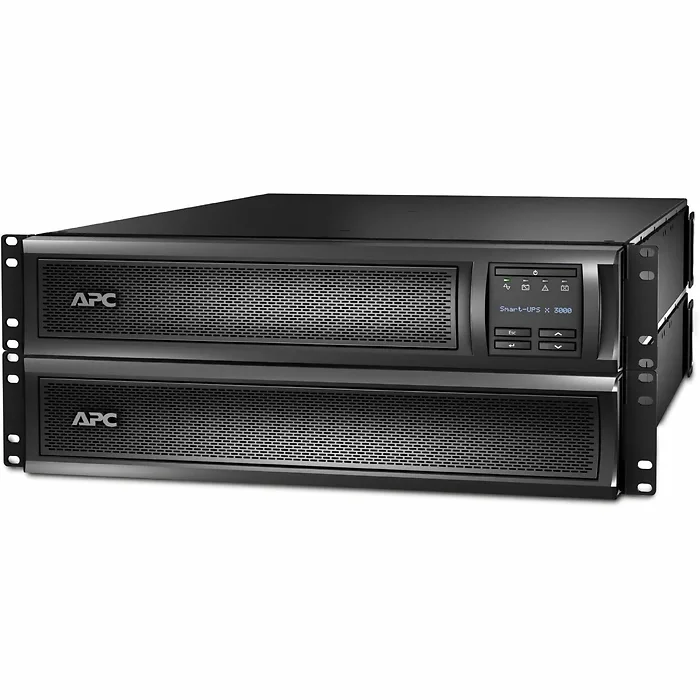

UPS - AC 208/220/230/240 V - 2.7 kW - 3000 VA - RS-232 USB - output connectors: 9 - 2U - black
Output
Output power capacity
2.7kWatts / 3.0kVA
Max Configurable Power (Watts)
2.7kWatts / 3.0kVA
Nominal Output Voltage
230V
Output Voltage Distortion
Less than 5%
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Other Output Voltages
208, 220, 240
Load Crest Factor
3 : 1
Topology
Line Interactive
Waveform type
Sine wave
Output Connections
(1) IEC 320 C19 (Battery Backup)
(8) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
Transfer Time
2-4 ms
Transfer Time
6ms typical : 10ms maximum
Input
Nominal Input Voltage
208V, 230V
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
Cord Length
1.83meters
Input voltage range for main operations
140 - 280V
Number of Power Cords
1
Other Input Voltages
220, 240
Transfer Time
2-4 ms
Batteries and Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
3hour(s)
Replacement Battery
APCRBC117
Expected Battery Life (years)
3 - 5
RBC Quantity
1
Extendable Run Time
1
Extended Run Options
APC-Smart-UPS-X-3000VA-Rack-Tower-LCD-200-240V
Communications and Management
Interface Port(s)
SmartSlot
Control panel
LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)
Yes
Available SmartSlot Interface Quantity
1
Surge Protection and Filtering
Surge energy rating
645Joules
Data Line Protection
--
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Rack Height
2U
Color
Black
Environmental
Operating Temperature
0 - 40^oC
Operating Relative Humidity
0 - 95 %
Operating Elevation
0-3000meters
Storage Temperature
-15 - 45^oC
Storage Relative Humidity
0 - 95 %
Storage Elevation
0-15000meters
Audible noise at 1 meter from surface of unit
55.0dBA
Online thermal dissipation
184.0BTU/hr
Conformance
Approvals
CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, UL 1778, VDE
Sustainable Offer Status
RoHS
Compliant
REACH
REACH: Contains No SVHCs
PEP
Available in Documentation tab
EOLI
Available in Documentation tab
Proposition 65 Warning
Available in Documentation tab
Item Dimension (L"xW"xH")
35 x 10 x 24
Weight
99.79 LB
Warranty Information
3 years repair or replace (excluding battery) and 2 year for battery.
