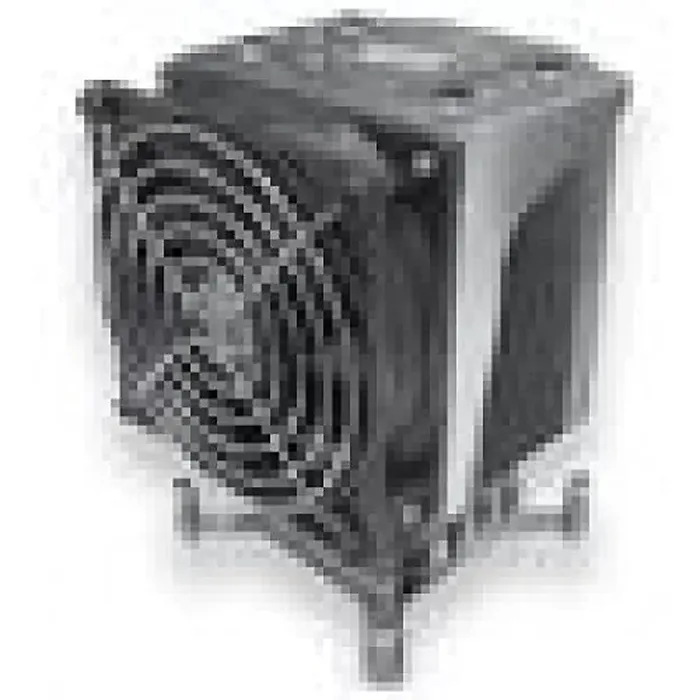

Fan InformationFan Speed (rpm): 8400 rpmNoise Levels: 52 dB(A)Heatsink InformationCompatible Processor Socket: Socket P LGA-3647Interfaces/PortsConnectors: 4-pin PWMPhysical CharacteristicsFan Height: 2.36"Fan Width: 2.36"Fan Depth: 0.98"MiscellaneousCompatibility: Supermicro X11DPL-i Motherboard Intel Xeon Scalable Processors Application/Usage: Processor, Motherboard, Chassis
Server Form Factor
2U Cooling Type
Active CPU Configuration
Uni Processor, Dual Processor Supported CPU SKU
Intel Xeon Scalable Processors Supported CPU Socket
FCLGA3647-0 (Square Mounting Mechanism) Supported CPU TDP
Up to 140 Watts Attached Cooling Fan
Speed Control: 4-pin PWM
Rated Voltage: 12.0 VDC
Rated Speed: 8,400 RPM
Acoustic Noise: 52.0 dB(A) at Rated Speed
Fan Dimensions: 60L x 60H x 25D mm
Position: Front Side
MTBF/MTTF: 145,190 Hours at 40 C Ambient Product Environmental Compliance
RoHS and REACH compliant, details available upon request Item Dimension ( L inch x W inch x H inch)
NA Weight
1.50 lb Warranty Information
1 Year
