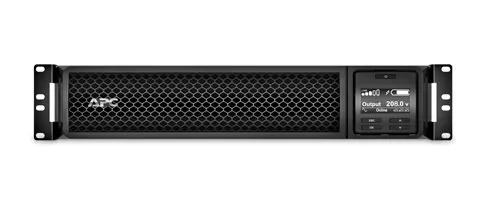

This APC Smart UPS SRT 2200Va 120V will make an ideal addition to your work setup, providing you with a warning when your battery is failing. With an ECO operating mode, it will bypass unused electrical components in good power condition to bring you high operating efficiency. This 120V UPS features an LCD graphics display that will display text and mimic diagrams that show modes of operation, system parameters and alarms. It is both rack and tower convertible, so you can set it up just as desired. The system has plug-and-play external batteries that will provide clean, uninterrupted power to the loads when adding extra runtime to the UPS.

Output
Output power capacity: 1.8 KWatts / 2.2 kVA
Max Configurable Power (Watts): 1.8 KWatts / 2.2 kVA
Nominal Output Voltage: 120V
Output Voltage Distortion: Less than 2%
Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
Load Crest Factor: 3 : 1
Topology: Double Conversion Online
Waveform type: Sine wave
Output Connections:
(6) NEMA 5-20R (Battery Backup)
(1) NEMA L5-20R (Battery Backup)
Bypass: Built-in Bypass Input
Nominal Input Voltage: 120V
Input frequency: 40 - 70 Hz (auto sensing)
Input Connections: NEMA 5-20P
Cord Length: 6ft ( 1.83meters )
Number of Power Cords: 1 Batteries and Runtime
Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules: 1
Typical recharge time: 3hour(s)

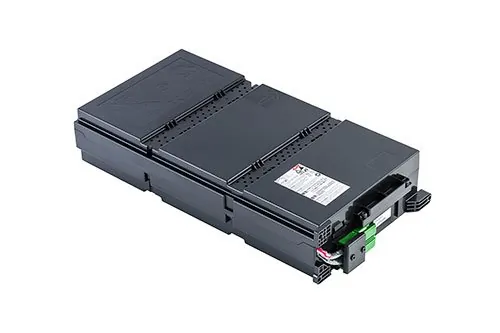

Replacement Battery: APCRBC141
Expected Battery Life (years) : 3 - 5
RBC Quantity: 1
Extendable Run Time: 1
Battery Volt-Amp-Hour Capacity: 306
Extended Run Options: APC-Smart-UPS-SRT-2200VA-RM-120V-Network-Card
Runtime: View Runtime Graph
Efficiency: View Efficiency Graph Communications and Management
Interface Port(s) : RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB
Pre-Installed SmartSlot Cards: AP9631
Control panel: Multi-function LCD status and control console
Audible Alarm: Audible and visible alarms prioritized by severity
Emergency Power Off (EPO): Yes Surge Protection and Filtering
Surge energy rating: 340Joules
Filtering: -- Rack Height
2U Color
Black Environmental
Operating Environment: 32 104oF ( 0 - 40oC )
Operating Relative Humidity: 0 - 95% non-condensing %
Operating Elevation: 0-10000ft ( 0-3000meters )
Storage Temperature: -20 - 50oC
Storage Relative Humidity: 0 - 95% non-condensing %
Storage Elevation: 0-50000ft ( 0-15000meters )
Audible noise at 1 meter from surface of unit: 55.0dBA
Online thermal dissipation: 535.0BTU/hr
Protection Class: IP 20 Conformance
Approvals: CSA C22.2 No.107.3-05, ENERGY STAR (USA), FCC Part 15 Class A, OSHPD, UL 1778 Sustainable Offer Status
RoHS: Compliant
REACH: Contains No SVHCs Item Dimension (L inchxW inchxH inch)
32 x 24 x 10

Weight
75.00 lb

Warranty Information
3 Years Repair or Replace (Excluding Battery) and 2 Years for Battery
