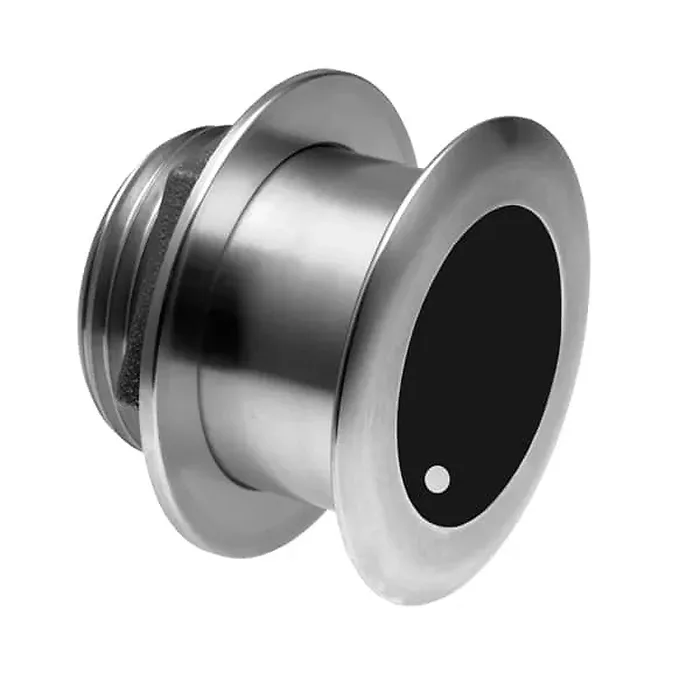

Airmar SS175C 0° Tilt

Medium CHIRP Performance Transducer

Model: SS175C-0-M

• Includes depth and water-temperature sensor
• 1 kW power with maximum depth capability of 457 m (1500 ft)
• Medium Frequency range: 85 kHz to 135 kHz with 16° to 11° beamwidth
• Provides a total bandwidth of 50 kHz from one transducer
• Delivers optimal shallow to mid-depth performance with excellent bottom detail and fish target resolution
• Recommended for boat sizes up to 11 m (36 ft)
• Constructed with stainless steel housing, suitable for all hull types
• Also available in a bronze housing model (B175H)
• Features exclusive Xducer ID® technology

The medium frequency range of 85 to 135 kHz strikes a balance between coverage area beneath the boat, extended depth range, and clarity in target and structure returns, especially in mid to deep water depths. This transducer effectively detects fish at medium depths, providing ultra-clear target resolution.

The tilted element design allows for a fixed angle of 0° within the transducer housing, ensuring optimal installation flush to the hull. This tilt mitigates hull deadrise, aligning the ceramic element horizontally to maximize echo returns.

• Depth and water-temperature sensor included
• 1 kW power, max depth of 457 m (1500 ft)
• 85 kHz to 135 kHz frequency range
• Optimal for boats up to 11 m (36 ft)
• Stainless steel housing for durability
