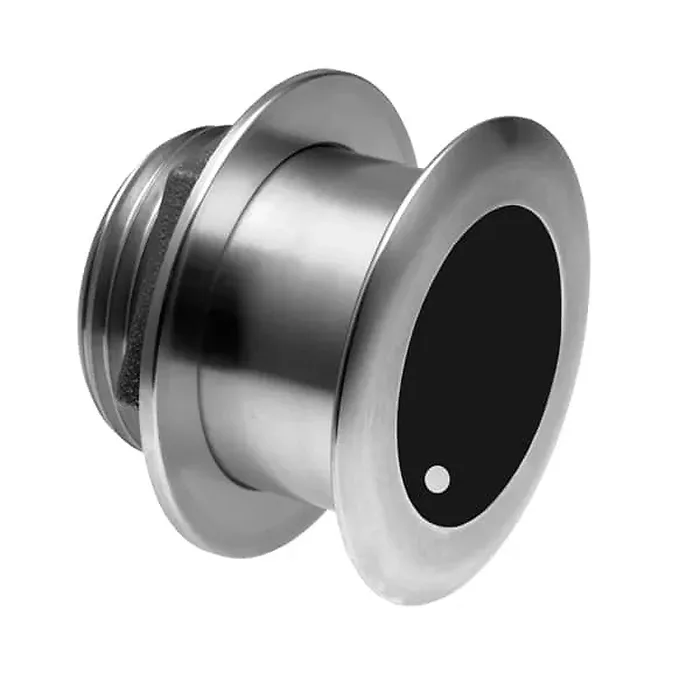

Airmar SS175C 20d Tilt CHIRP Transducer

This high-performance CHIRP transducer is designed for optimal depth detection and water-temperature sensing. With a 20-degree tilt, it provides precise readings and excellent tracking capabilities.

Specifications:

• Depth and fast-response water-temperature sensor
• 1 kW with a maximum depth of 304 m (1000')
• High Frequency: 130 kHz to 210 kHz with a 10° to 6° beamwidth
• 80 kHz of total bandwidth from a single transducer
• Superior shallow water performance, bottom detail, and fish target separation
• Recommended for boats up to 11 m (36')
• Durable stainless steel housing suitable for all hull types
• Also available in a bronze housing model
• Features exclusive Xducer ID® technology

The SS175C transducer is the ideal choice for smaller boats like center consoles, delivering deep water performance with a low profile. Its unique installation allows for a near-flush fit against the hull, optimizing the tilt for accurate echo returns.

• Length: 20 degree tilt
• Max Depth: 304 m (1000')
• Frequency Range: 130 kHz - 210 kHz
• Beamwidth: 10° to 6°
• Weight: 2.7 kg (6 lb)
• Hull Deadrise: 16° to 24°
• Hole Size: 98 mm (3-7/8")
