Airmar 20d Tilt High Wide CHIRP Transducer

This advanced transducer features a 20-degree tilt and high wide CHIRP capabilities, ensuring optimal performance for both inshore and offshore fishing. The unique design allows for enhanced coverage and resolution while operating at depths of up to 500 feet.

Designed for easy installation almost flush to the hull, this transducer compensates for hull deadrise angles, ensuring maximum echo returns and clarity.

Specifications:

• Weight: 2.7 kg (6 lb)
• Hull Deadrise: 16° to 24°
• Acoustic Window: Urethane
• Hole Size: 98 mm (3-7/8”)

• Depth and fast-response water-temperature sensor
• 1 kW power output with 500' maximum depth
• Frequency range: 150 kHz to 250 kHz with a constant 25° beamwidth
• Superior shallow water performance and fish target separation
• Wide beam for enhanced coverage under the boat

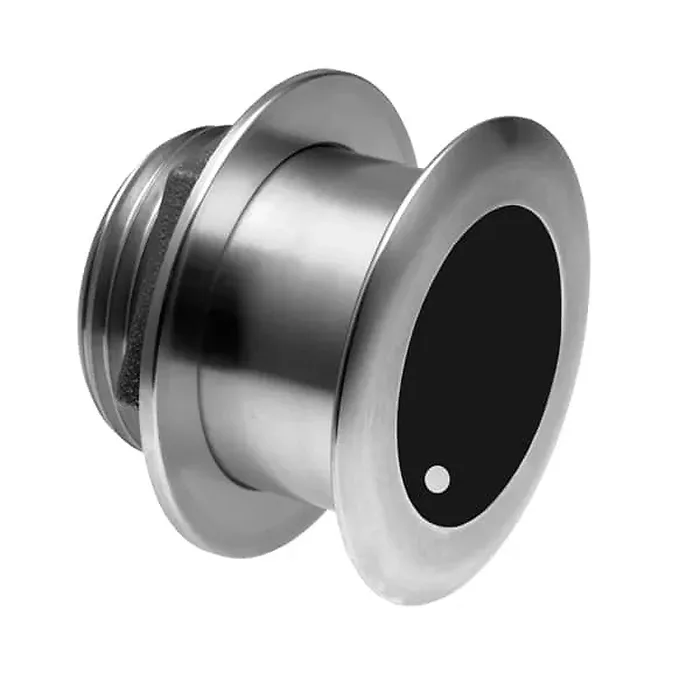

• Low-profile thru-hull design with stainless steel housing
• Recommended for boats up to 11 m (36')
• Compatible with various mounting options like transom-mount, in-hull, and bronze housing models
• Exclusive Xducer ID® technology
