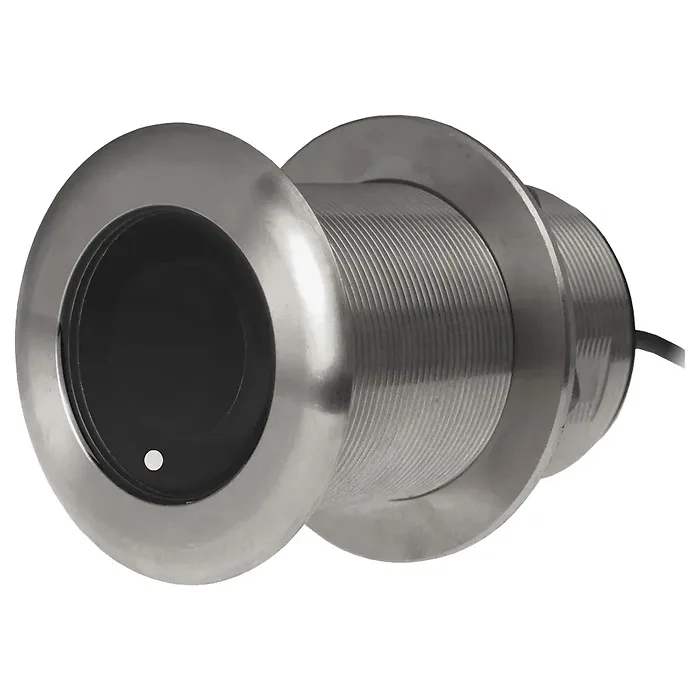

Airmar SS175 Medium CHIRP Ultra-Wide 20° Tilted Element Thru-Hull

The Airmar SS175 Medium CHIRP transducer features a fixed 20° tilted design suitable for hull deadrise angles from 16° to 24°. This advanced transducer offers an impressive depth tracking capability of up to 400 meters (1,300 feet) with a power rating of 1 kW, making it an excellent choice for anglers targeting pelagic species.

Utilizing medium frequency ranging from 60-100 kHz, the SS175 provides a substantial beamwidth of 57° to 73° port/starboard and 16° average fore/aft, ensuring maximum coverage and superior fish-target separation. Designed for optimal performance at speed, the low-profile thru-hull housing minimizes water resistance.

The innovative transducer also includes a depth and fast-response water-temperature sensor, making it versatile for various fishing conditions. Exclusive Xducer ID® technology enhances performance and user experience.

Specifications:

With a ceramic element that can be mounted at angles of 20°, 12°, or 0°, the SS175 is engineered to be installed nearly flush against the hull, which corrects for deadrise and ensures accurate echo returns for clear imaging.

• 1 kW power rating for deep water performance
• Depth tracking capability up to 400 meters (1300 feet)
• Medium frequency range: 60-100 kHz
• Wide beamwidth: 57° to 73° (port/starboard)
• Fast-response water temperature sensor
• Low-profile thru-hull housing for reduced drag
• Compatible with various hull materials
• 9 m (30') cable length included
• Weight: 2.7 kg (6 lb.)
• Acoustic window made of urethane
