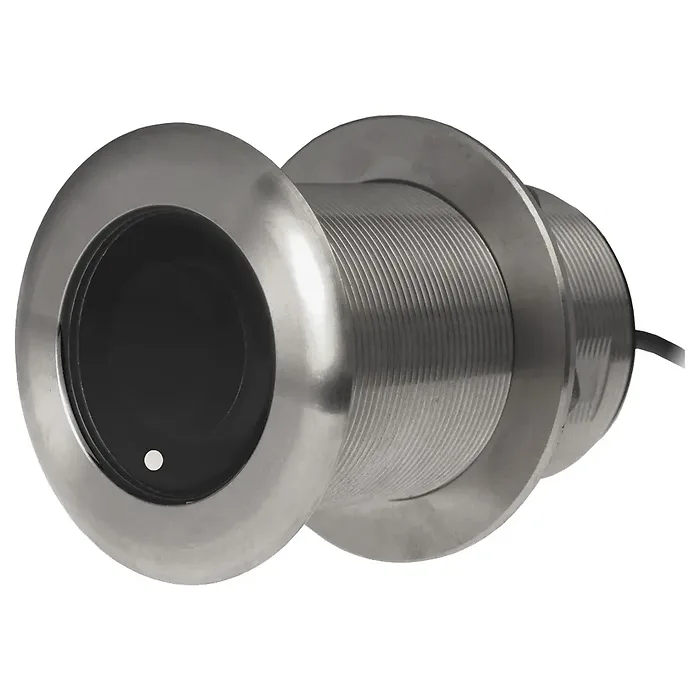

Airmar SS175 Medium Tilt CHIRP Transducer - 20 Degree with Raymarine 11-Pin Connector

The Airmar SS175 Medium Tilt CHIRP Transducer is designed to deliver exceptional performance in various fishing conditions. This innovative transducer utilizes a medium frequency (60-100 kHz) with a fixed 20-degree tilt angle, suitable for hull deadrise ranging from 16 to 24 degrees. It features an advanced depth tracking capability down to 400 meters and includes a fast-response water-temperature sensor.

The design incorporates a unique ultra-wide beamwidth of 57 to 73 degrees (port/starboard) and provides effective fish-target separation for superior mid-depth performance. With its low-profile, thru-hull housing, it allows for excellent resolution while the vessel is in motion when installed correctly.

Ideal for anglers seeking deeper species, the SS175 is an excellent addition when paired with other popular models from Airmar, creating a comprehensive suite of frequencies suitable for both shallow and deep water fishing.

Specifications:

• Power Rating: 1 kW
• Max Deadrise Angle: 24°
• Housing: Stainless Steel
• Functions: Depth, Temperature
• Max Vessel Loa: Up to 11 m (36')
• Hole Size: 95 mm (3-3/4')
• Mounting Style: Tilted Element Thru-Hull
• Max Depth: 400 m (1,300')

• Medium frequency range: 60-100 kHz
• Depth tracking down to 400 m
• Fast-response water-temperature sensor
• Ultra-wide beamwidth: 57° to 73° port/starboard
• Fixed 20° tilt for optimal performance
• Low-profile design ensures good resolution at speed
• Compatible with Raymarine 11-Pin Mix-N-Match cable
