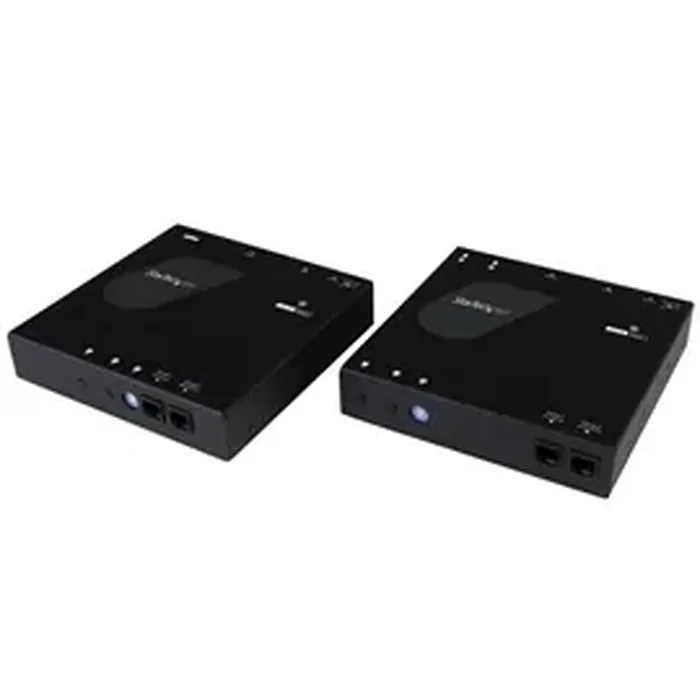

StarTech.com HDMI Video and USB over IP Distribution Kit with Video Wall Support - 1080p - Deploy HDMI and USB content for digital signage through a scalable distribution system with intuitive control that's ideal for point-to-point or video wall applications - HDMI Extender - HDMI over Ethernet - HDMI over LAN - HDMI over CAT5 or CAT6

MFG No: ST12MHDLANU
SKU No: WOPUHO7Y0Y
UPC: 065030862110
MFG. Name: STARTECH
Available: 3
Condition: New

$646.23


StarTech.com HDMI Video and USB over IP Distribution Kit with Video Wall Support - 1080p - 1 Input Device - 1 Output Device - 330 ft Range - 2 x Network (RJ-45) - 5 x USB - 1 x HDMI In - 1 x HDMI Out - WUXGA - 1920 x 1200 - Twisted Pair - Category 6

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:ST12MHDLANU
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:HDMI and USB over IP Distribution Kit - 1080p
Marketing Information:

This HDMI® over IP kit lets you extend an HDMI signal, as well as four USB peripheral device connections, over your network. You can use additional receivers (sold separately) to distribute the HDMI and USB signals to multiple locations and combine your remote displays to create a videowallwhile using the USB connection to extend a touch screen to create an interactive digital signage presentation.

Versatile configuration options

In a point-to-multipoint setup, you can connect the HDMI over IP kit through an unmanaged or managed Gigabit LAN portal. You can also connect one or several sources (transmitters) to multiple displays (receivers) over your network, usinga managed Gigabit Ethernet switch with IGMP. For further scalability, you can combine up to 16 different extender kits.

For smaller-scale applications, you can use the extender kit as a point-to-point video extender by connecting the transmitter and receiver units directly over Cat5 or Cat6 cabling for a one-to-one HDMI extension up to 330 feet (100 meters).

Manage your video distribution from your mobile device

This HDMI distribution kit features an easy-to-use video control software app that helps you manage your IP video distribution. The app is simple to set up, with automatic hardware detection, and it lets you switch video sources for each remote display. You can also create and manage a video wall, for an impressive digital signage presentation that's sure to catch your audience's attention.

The software is available on iOS for your iPhone or iPad, Android™ for your smartphone or tablet, and Google Chrome™browser.

Professional, cost-effective,simpleinstallation

The HDMI over IP extender kit can be powered using Power over Ethernet to conveniently connect both data and power using an 802.3af PoE switch or injector, avoiding the hassle of external power adapters.

The kit includes optional mounting hardware for a tidy installation. Ideal for high-definition applications, the extender supports 1080p video resolutions and digital stereo audio. Plus, because the extender uses standard non-proprietary Cat5e or Cat6 Ethernet cable with RJ45 connectors, it eliminates both the expense and hassle of running specialized cables.

The extender also features an EDID copy function, which ensures native resolution and maximum compatibility with your display or projector, for a convenient plug-and-play installation.

Download the StarTech.com Video Control software to manage your IP video distribution.

Note: For best performance, a managed network switch with IGMP is recommended if you are using more than one transmitter, or more than four receivers, Non-managed network switches may also limit the performance of other devices connected to the same network.

The ST12MHDLANU is TAA compliant and backed by a StarTech.com 2-year warranty with free lifetime technical support.


Product Type:Video Extender Transmitter/Receiver

Technical Information
Connectivity Technology:Wired
Number of Input Devices Supported:1
Number of Output Devices Supported:1
Maximum Operating Distance:330 ft
Video
Graphics Modes:WUXGA
Maximum Video Resolution:1920 x 1200
Interfaces/Ports
Network (RJ-45):Yes
HDMI In:Yes
HDMI Out:Yes
USB:Yes
Number of Network (RJ-45) Ports:2
Number of USB Ports:5
Number of HDMI Inputs:1
Number of HDMI Outputs:1
Media & Performance
Media Type Supported:Twisted Pair
Twisted Pair Cable Standard:Category 6
Physical Characteristics
Product Color:Black
Transmitter Height:1.10"
Transmitter Width:5.20"
Transmitter Depth:5.20"
Receiver Height:1.10"
Receiver Width:5.20"
Receiver Depth:5.20"
Transmitter Weight (Approximate):2.65 lb
Receiver Weight (Approximate):2.65 lb
Miscellaneous
Package Contents:
  • 1 x HDMI over IP Transmitter
  • 1 x HDMI over IP Receiver
  • 2 x Power Adapters
  • 2 x Screws
  • 1 x Screw Driver
  • 2 x CAT5 Cables
  • 2 x Mounting Brackets
  • 1 x Quick Install Guide

Environmentally Friendly:Yes
Environmental Certification:
  • RoHS
  • WEEE
  • REACH

Country of Origin:Taiwan
TAA Compliant:Yes
Warranty
Limited Warranty:2 Year
