The Seagate Savvio 10K.6 ST600MP0136 is a high-performance 2.5-inch enterprise hard drive with a capacity of 600GB, a spindle speed of 10,000 RPM, and a SAS 6Gb/s interface. It is designed for demanding server and storage environments requiring high reliability and data throughput.
Product Description
The Seagate Savvio 10K.6 ST600MP0136 enterprise hard drive delivers exceptional performance and reliability for mission-critical applications. Its 10,000 RPM spindle speed ensures fast data access, while the 6Gb/s SAS interface provides high bandwidth for rapid data transfer. With a capacity of 600GB, it offers ample storage for transactional databases, high-performance computing, and other demanding workloads. The 2.5-inch form factor allows for efficient use of space in dense server and storage arrays.
Product Specifications
- Product Line: Savvio 10K.6
- Model Number: ST600MP0136
- Capacity: 600GB
- Interface: SAS 6Gb/s
- Form Factor: 2.5-inch
- Spindle Speed: 10,000 RPM
- Cache: 64MB
- Average Latency: 3.0 ms
- Sustained Transfer Rate OD Max: 175 MB/s
- Random Read IOPS (4K QD=16): Up to 315 IOPS
- Random Write IOPS (4K QD=16): Up to 240 IOPS
- Nonrecoverable Read Errors per Bits Read: 1 per 10^15
- Mean Time Between Failures (MTBF): 2,000,000 hours
- Power Consumption (Idle): 5.5 W
- Power Consumption (Typical Operating): 8.1 W
- Operating Temperature: 5?C to 55?C
- Non-Operating Temperature: -40?C to 70?C
- Height: 15.00 mm
- Width: 70.10 mm
- Depth: 100.45 mm
- Weight: 227 g (0.5 lb)

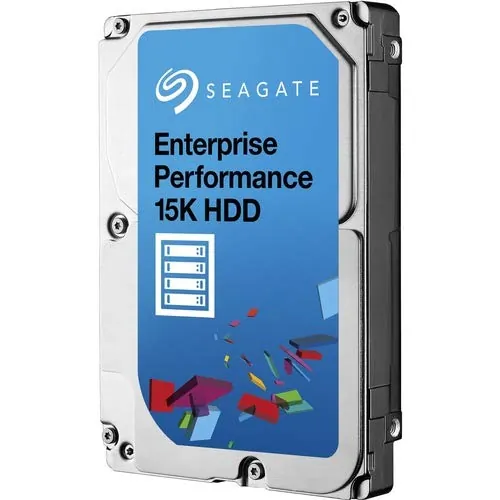

Product may differ from image shown
Specifications 4K Native / 512 Emulation
Capacity 600GB
Performance Average Latency (ms): 2
Sustained Transfer Rate (Outer to Inner Diameter): 315 to 215MB/s
Max. Instantaneous Transfer Rate (SAS dual Ports): 2400 MB/s
Cache, Multi-segmented (MB): 256
Interface: SAS 12Gb/s
Intelligent NAND Endurance Management: Yes
FeaturesFast-Format Models: Yes
TurboBoost Enhanced Read: Yes
Advanced Write Caching: Yes
Low Halogen: Yes
PowerChoice Idle Power Technology: Yes
Hot Plug Support: Yes
Organic Solderability Preservative: Yes
Digital Sensors for Humidity: Yes
Configuration/ReliabilityDiscs/Heads: 2/4
Non-recoverable Read Errors per Bits Read, Max: 1 Per 10E 16
Annualised Failure Rate (AFR): 0.44%
Power ManagementTypical Op (A) +5V/+12V: 7.2
Average Idling Power (W): 5.8
Average Operating Power (W): 7.2
EnvironmentalAmbient Temperature, Operating: 5
oC to 55
oC
Ambient Temperature, Non-operating: -40
oC to 70
oC
Temperature Change Rate/Hr, Max: 20
oC
Relative Humidity, Non-condensing (max gradient 20%/hour): 5% to 95%
Shock, Max. Operating: 11ms (Gs): 40
Shock, Max. Non-operating: 2 ms (Gs): 400
Vibration, Operating, <400 Hz (Gs): 0.5
Vibration, Non-operating: <500Hz (Gs): 2.4
Item Dimension (L inchxW inchxH inch)4 x 3 x 1
Weight1.00lb
Warranty Information5 Years
