Product Information

• Part Number: ST680P
• Model Name: SmartMount Universal Tilt Wall Mount
• Minimum Screen Size Supported: 61 inches
• Maximum Screen Size Supported: 102 inches
• Maximum Weight Capacity: 350 lbs (158.76 kg)
• Mount Type: Tilting Wall Mount

Product Description

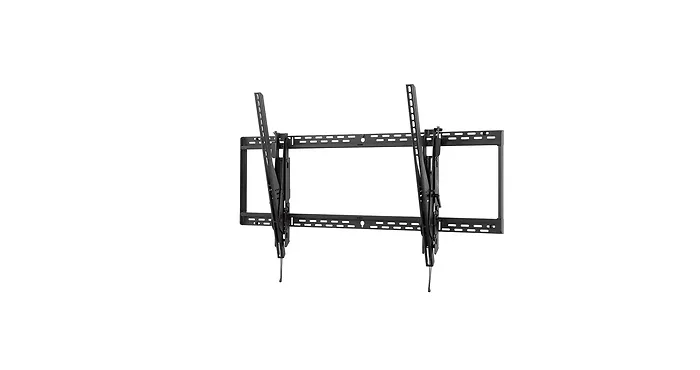

The Peerless ST680P SmartMount Universal Tilt Wall Mount offers a reliable and stylish solution for mounting large flat panel displays ranging from 61 to 102 inches. This innovative mount features a slim profile while securely holding displays weighing up to 350 lbs. Its easy installation process includes auto-latching adapter rails that allow the display to be secured without tools, and a built-in kickstand to facilitate cable management. The design also supports an open wall plate for versatile electrical and cable routing options. The exclusive pre-tensioned design allows for quick adjustments of the tilt viewing angle with fixed options available, ensuring optimal viewing from various positions.

Product Specifications

• Color: Black
• Finish: Powder Coat, Fused Epoxy
• Distance from Wall: 3.38 - 10.58 inches (86 - 269mm) adjustable due to tilt
• Tilt Angle: +15° to -5°
• VESA Mounting Patterns Supported: ['200x200', '200x300', '200x400', '200x500', '300x200', '300x300', '300x400', '300x500', '300x600', '400x200', '400x300', '400x400', '400x500', '400x600', '500x200', '500x300', '500x400', '500x500', '500x600', '600x300', '600x400', '600x500', '600x600', '600x900', '700x300', '700x400', '700x500', '700x600', '700x700', '800x300', '800x400', '800x500', '800x600', '800x700', '900x400', '900x500', '900x600', '900x700', '1000x400', '1000x500', '1000x600', '1000x700', '1100x700', '1119x745mm (44.04" W x 29.31" H)']
• Mounting Surface: Wood studs (2 or 3), Concrete, Cinder block, Metal studs (accessory required)
• Horizontal Adjustment: Up to 12 inches (304mm)
• Vertical Adjustment: 1 inch (post-installation)
• Security Features: Non-security hardware
• UL Listed: Yes
• Product Dimensions (W x H x D): 45.75" x 26.50" x 3.38"-10.58" (1162 x 673 x 86-269mm)
• Product Weight: 19.13 lbs (8.7 kg)
• Shipping Weight: 24.5 lbs (10 kg)
• Warranty: 5-year limited warranty

• Supports 61" to 102" Plasma and LCD Flat Panel Displays
• Slim design for enhanced aesthetics
• Tool-less installation with auto-latching adapter rails
• Built-in kickstand for easy cable management
• Fixed tilt angles for optimal viewing
