General Information

---

Manufacturer:StarTech.com
Manufacturer Part Number:ADJSHELFHDV
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

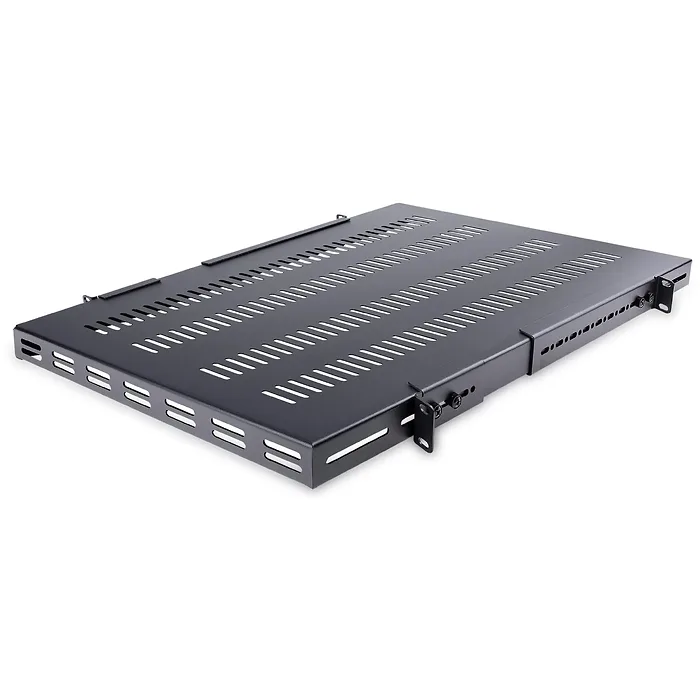

Product Name:1U 4-Post Adjustable Mounting Depth Heavy Duty Shelf - 27.5in/700mm Depth
Marketing Information:

The ADJSHELFHDV 1U 4-Post Adjustable Heavy Duty Vented Rack Mount Shelf lets you add a high-capacity, adjustable 1U shelf to virtually any standard 19-inch 4-post server rack or cabinet.

This heavy duty rackmount shelf can be adjusted from 19.5in to 38in (mounting depth) to fit your rack, while the vented design improves air flow and help to lower temperatures in the rack. Constructed using 1.2mm SPCC commercial grade cold-rolled steel, providing the ability to hold up to 150kg (330lbs) of equipment - a durable solution for storing large, non-rackmount pieces of equipment, heavy tools or peripherals in your rack or cabinet.

The ADJSHELFHDV is backed for life, including free lifetime 24/5 multi-lingual technical assistance.

More from the Manufacturer

Packaged Quantity:1 Each
Product Type:Rack Shelf

Technical Information

---

Application/Usage:

• Server
• A/V Equipment

Features:

• Heavy Duty
• Vented
• Adjustable Depth

Rack Post Quantity:4

Physical Characteristics

---

Color Family:Black
Product Color:Black
Product Material:SPCC
Static/Stationary Weight Capacity:330.80 lb
Height:1.7"
Width:19"
Length:27.6"
Weight (Approximate):12.50 lb
Rack Height:1U
Rack Width:19"
Rack Depth:38.30"

Miscellaneous

---

Package Contents:

• 1 x 1U 4xPost Adjustable Mounting Depth Heavy Duty Shelf - 27.5in/700mm Depth
• 1 x Instruction Manual
• 1 x 1U Shelf Body
• 2 x Front Mounting Brackets
• 2 x Rear Mounting Brackets
• 8 x M6x12mm Mounting Bracket Screws
• 8 x M6x12 mm Screws
• 8 x M6 Cage Nuts
• 8 x M6 Plastic Washer
• 1 x Quick-Start Guide

Additional Information:

• EIA RS310-D Standards
• Vented server rack shelf improves air flow and helps lower temperatures in the cabinet
• Adjustable mounting depth brackets make it simple to add a storage shelf to a wide variety of racks or cabinets
• Adding a storage shelf to shallow depth network switches/equipment racks
• Supply additional storage space for heavy, mission critical hardware and non-rack mount equipment

Country of Origin:Taiwan
TAA Compliant:Yes
Environmentally Friendly:Yes
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty

---

Limited Warranty:Lifetime
