General Information

---

Manufacturer:StarTech.com
Manufacturer Part Number:LSATA18
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

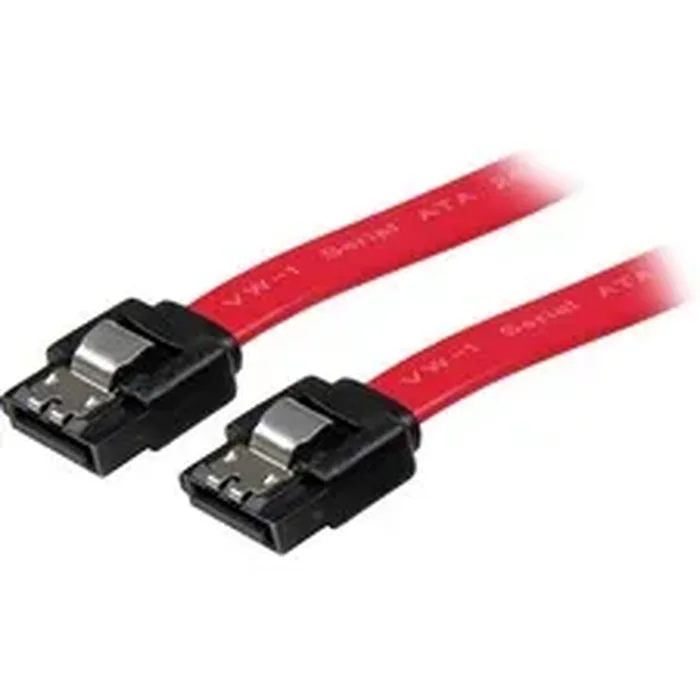

Product Name:Latching SATA Cable
Marketing Information:

The LSATA18 SATA Cable features two latching 7-pin data receptacles and supports full SATA 3.0 bandwidth of up to 6Gbps when used with SATA 3.0 compliant drives.

The latching connectors lock when connected to a supporting (latchable) SATA port, ensuring a snug, and secured data connection every time to prevent accidental disconnects.

Featuring a low profile, yet durable construction, the flexible design improves airflow and reduces clutter in your computer case, helping to keep the case clean and cool.

Constructed of only top quality materials and designed for optimum performance and reliability this 18" SATA cable is backed by our lifetime warranty.

More from the Manufacturer

Packaged Quantity:1 Each
Product Type:Data Transfer Cable

Technical Information

---

Cable Type:SATA
Cable Length:1.50 ft
Connector Type on First End:SATA 3.0 - Male
Connector Gender on First End:Male
Connector on First End Details:1 x 7-pin SATA 3.0 - Male
Connector Type on Second End:SATA 3.0 - Male
Connector Gender on Second End:Male
Connector on Second End Details:1 x 7-pin SATA 3.0 - Male
Conductor:Copper
Device Supported:

• Hard Drive
• Expansion Card
• Mounting Bracket
• RAID Controller

Data Transfer Rate:6 Gbit/s
Features:

• Locking Latch
• Flexible

Physical Characteristics

---

Color Family:Red
Product Color:Red
Weight (Approximate):0.03 lb

Miscellaneous

---

Compatibility:

StarTech Expansion Card:

• 10P6G-PCIE-SATA-CARD
• 2P6G-PCIE-SATA-CARD
• 4P6G-PCIE-SATA-CARD
• 6P6G-PCIE-SATA-CARD

StarTech Mounting Brackets:

• BRACKET125PT
• BRACKET125PTP
• BRACKET225PT
• BRACKET425F

StarTech RAID Controllers:

• PEXMSATA3422
• PEXMSATA343
• ST521PMINT

StarTech Drive Cabinets:

• HSB13SATSASB
• HSB1SATSASBA
• SATSASBP425
• HSB43SATSASB
• HSB4SATSASBA
• HSB1SATSASVA

StarTech HSB225S3R Storage System

StarTech 35S24M2NGFF Hard Drive Adapter

Environmentally Friendly:Yes
Environmental Compliance:

• Waste Electrical and Electronic Equipment Directive (WEEE)
• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Country of Origin:China

Warranty

---

Limited Warranty:Lifetime
