General Information

---

Manufacturer:StarTech.com
Manufacturer Part Number:MASFP1GBLX10
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

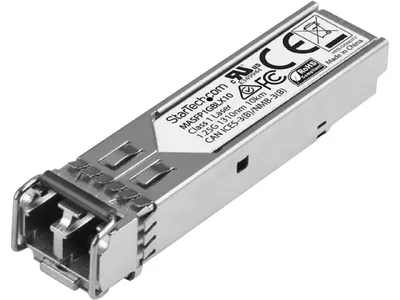

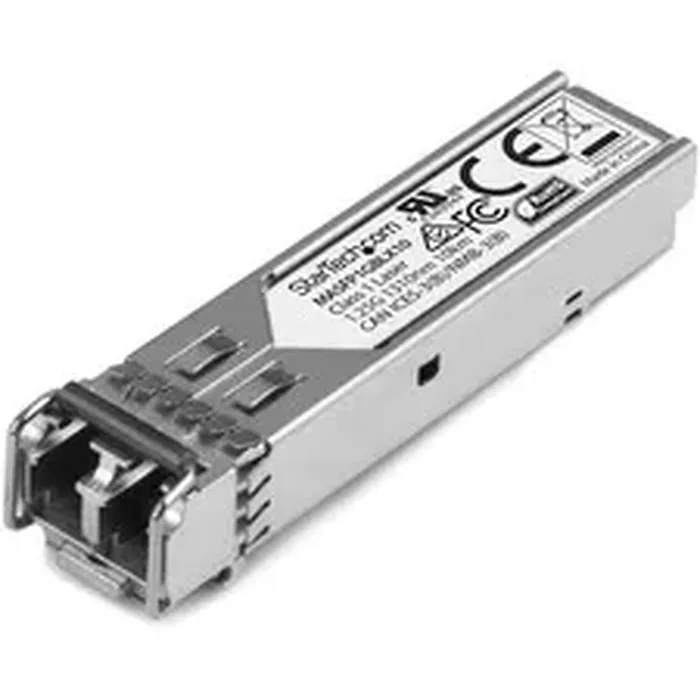

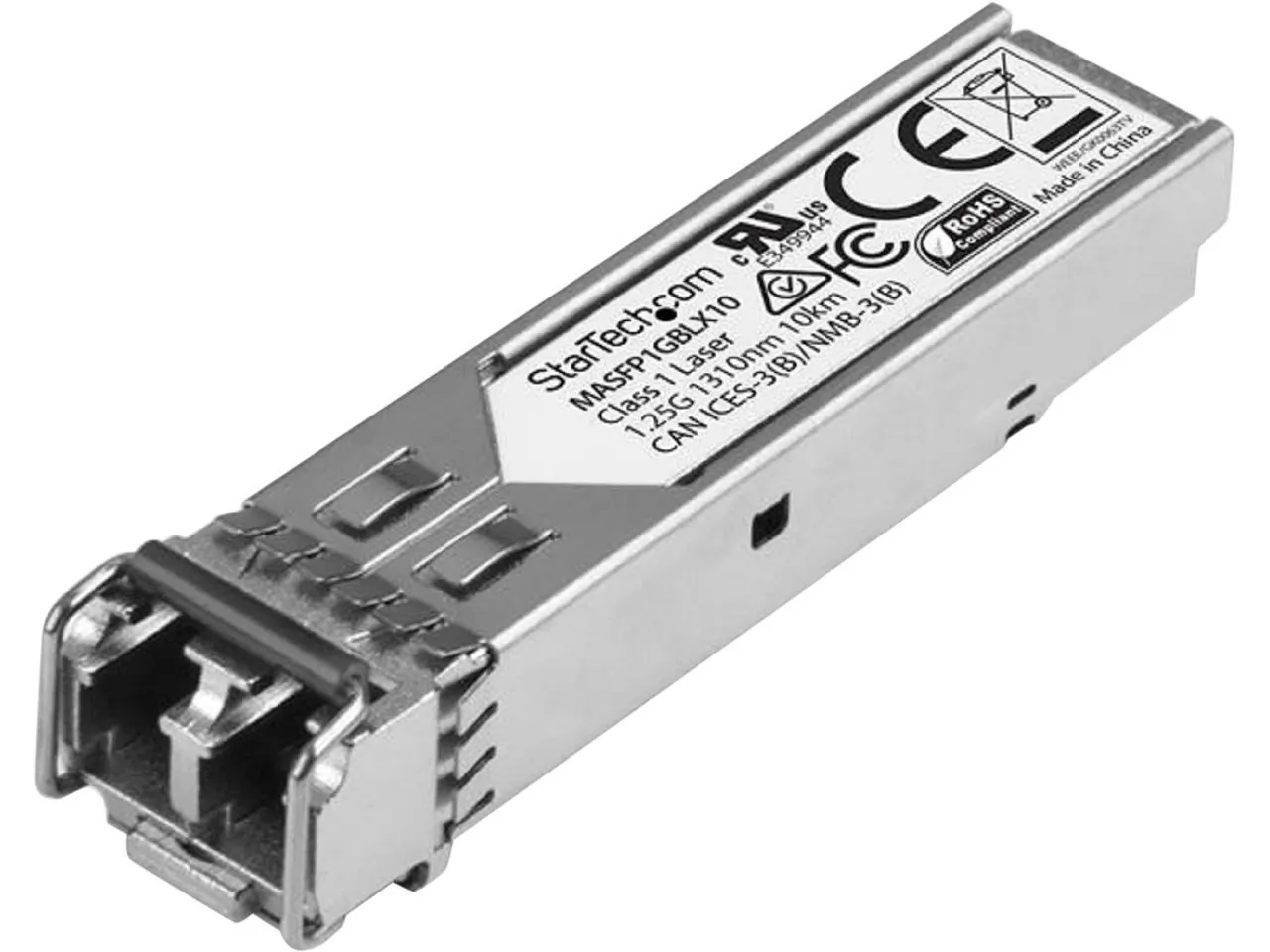

Product Name:Cisco Meraki MA-SFP-1GB-LX10 Compatible SFP Transceiver Module - 1000BASE-LX
Marketing Information:The MASFP1GBLX10 is a Cisco Meraki MA-SFP-1GB-LX10 compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (100Mbps) connectivity over fiber cable, for 1000Base-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:

• Wavelength: 1310nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 3,092,408 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

More from the Manufacturer

Packaged Quantity:1 Each
Product Type:SFP (mini-GBIC)

Technical Information

---

Application/Usage:

• Data Networking
• Optical Network

Interfaces/Ports

---

Total Number of Ports:1
Connector Type:LC
Interfaces/Ports Details:1 x LC Duplex 1000Base-LX Network

Media & Performance

---

Media Type Supported:Optical Fiber
Fiber Mode Supported:Single-mode
Ethernet Technology:1.25 Gigabit Ethernet
Network Technology:1000Base-LX

Physical Characteristics

---

Form Factor:

• Hot-pluggable
• Hot-swappable

Height:0.5"
Width:5.1"
Depth:2.2"
Weight (Approximate):0.04 lb

Miscellaneous

---

Compatibility:

• MSA Compliant

Cisco Meraki Switches:

• MS225
• MX400
• MS250
• MS350
• MX84

Country of Origin:China
Environmentally Friendly:Yes
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

---

Limited Warranty:Lifetime
