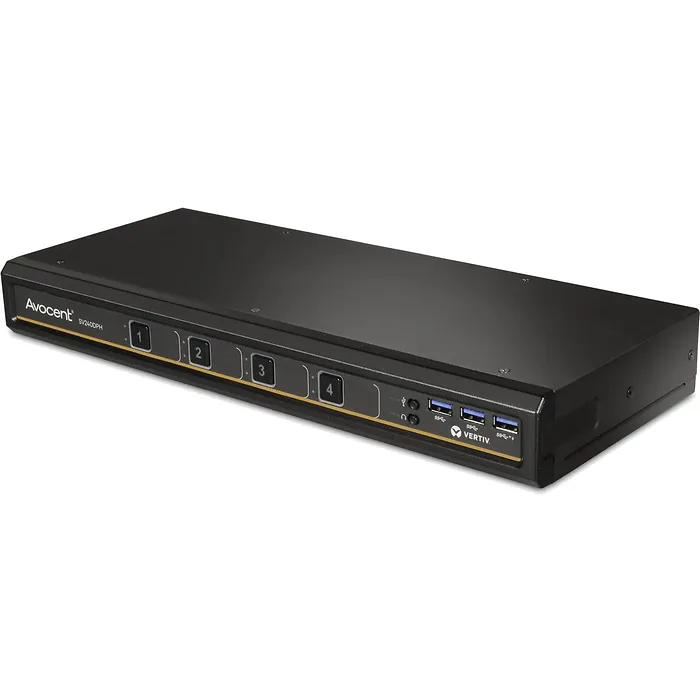

The Vertiv SV240DPH-400 AvocentSV Universal DP/H KVM Switch allows a single monitor, keyboard, and mouse to be shared across up to four computers. This device supports both DisplayPort and HDMI connections for broad compatibility.

• Computers Ports: 4
• Video Type: 1 x DP / HDMI universal port
• Max Resolution: UHD 4K (3840x2160) @ 60Hz
• Keyboard and Mouse (Computer Side): 1 x USB 2.0 Type B
• Analog Audio (Computer Side): 2 x 3.5mm Speaker
• Video Type (Console Side): 1 x DP / HDMI universal port
• Keyboard and Mouse (Console Side): 2 x USB 2.0 Type A
• Analog Audio (Console Side): 1 x 3.5mm Speaker
• Dimensions (WxDxH): 13.7 x 5.0 x 1.7 in (348 x 127 x 43 mm)
• Weight: 3.0 lbs / 1.5 Kg
• Mounting Options: Desk Mount - DMK-09
• Operating Temp: 0 to 40C / 32 to 104 F
• Storage Temp: -20 to 60C / -4 to 140 F
• Humidity: 0 to 80% RH, non-condensing
• AC Input Voltage: 100 - 240V AC
• Power Supplies: 1 x external, 2.5A Max
• Power Connector: Wall-mounted power supply with user-interchangeable localized plug blades.
• Security Evaluation: Designed for Common Criteria Protection Profile for Peripheral Sharing Device v. 4.0 and Evaluation Assurance Level (EAL) 4+
• Regulatory Certification: FCC class A, CE, TUV US, TUV Canada, RCM, VCCI
• Design & Assembly: Huntsville, AL USA
• Number of Computers Supported: 4
• Number of Local Users Supported: 1
• Number of Remote Users Supported: 0
• Maximum Operating Distance: 10 ft
• Number of USB Ports: 5

Product Tags

AVOCENT SV Universal DisplayPort/HDMI KVM Switch - 4-Port
