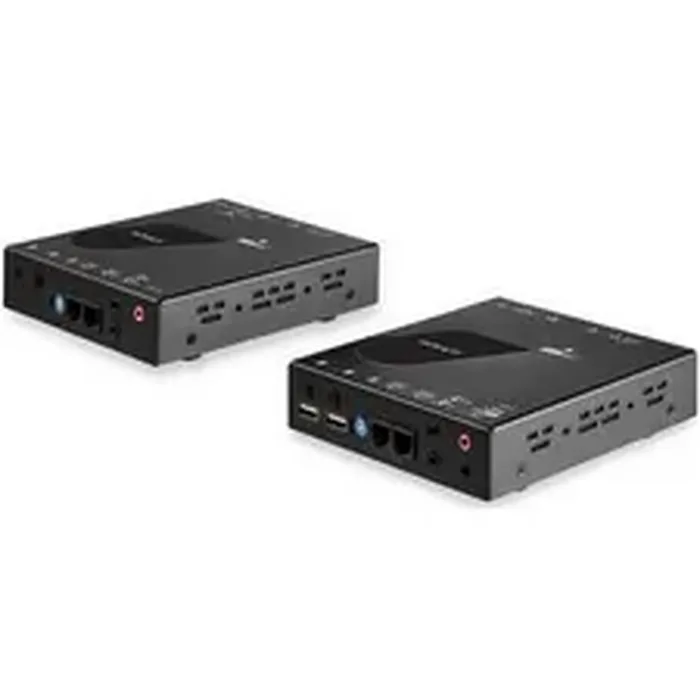

30HZ KVM CONSOLE EXTENDER OVER IP
Hardware
Audio
Yes
Chipset ID
ASPEED - AST1520
Daisy-Chain
No Performance
Audio Specifications
7.1 Surround Sound (HDMI)
Analog Stereo Sound (3.5 mm)
Analog Mono Microphone (3.5 mm)
Maximum Cable Length
328 ft 100 m
Maximum Data Transfer Rate
12MBps
Maximum Digital Resolutions
3840 x 2160 at 30Hz (4K)
MTBF
60000 hours
Supported Resolutions
3840x2160 (4K) at 30Hz
2560x1600
1920x1200 at 60Hz
1920x1080 (1080p)
1280x720 (720p)
Wide Screen Supported
Yes Connector(s)
Local Unit Connectors
1 - HDMI (19 pin)
1 - RJ-45
2 - RJ-11 Female
2 - 3.5 mm Audio Female
2 - 3.5 mm Mini-Jack (3 Position) Female
1 - USB Mini-B (5 pin) Female
Remote Unit Connectors
1 - HDMI (19 pin)
1 - RJ-45
2 - RJ-11 Female
2 - 3.5 mm Audio Female
2 - 3.5 mm Mini-Jack (3 Position) Female
2 - USB Type-A (4 pin) USB 2.0 Female
2 - USB Type-A (4 pin HID Port) USB 1.1 Female Indicators
LED Indicators
1 - Transmitter: Green - No Link Blue - Good Link Flashing Blue/Green - Linked but no video
1 - Transmitter: Flashing Orange - Network connection
1 - Receiver: Red - No Link Blue - Good Link Flashing Blue/Red - Linked but no video
1 - Receiver: Flashing Orange - Network connection Power
Center Tip Polarity
Positive
Input Current
0.6 A
Input Voltage
100 - 240 AC
Output Current
1.5A
Output Voltage
12V DC
Plug Type
M
Power Consumption (In Watts)
18W
Power Source
2 AC Adapters Included Environmental
Humidity
0% to 80%
Operating Temperature
0^oC to 40^oC (32^oF to 104^oF)
Storage Temperature
-10^oC to 60^oC (14^oF to 140^oF) Physical Characteristics
Color
Black
Material
Steel Whats in the Box
Included in Package
1 - Transmitter Unit
1 - Receiver Unit
2 - Universal Power Adapters (NA, JP, EU, UK, AU/NZ)
2 - Mounting Kits
2 - Ethernet Cables
2 - DB9 Serial Adapters
2 - RJ11 Serial Cables
1 - HDMI Cable (1.2 m)
1 - USB Cable (1.5 m)
8 - Rubber Feet
1 - Plastic Screwdriver
1 - Quick-Start Guide
Cables Included
Yes
DVI Support
Yes
Hot-Key Selection
No
IP Control
No
KVM Ports
1
Max Transfer Distance
100 m (328 ft)
Number of Monitors Supported
1
On-Screen Display
Yes
PC Interface
USB
PC Video Type
HDMI Item Dimension (L"xW"xH")
8 x 15 x 10

Weight
9 lbs

Warranty Information
2 Year Warranty
