UPS - INTERNAL - ONLINE - AC 120/208 V ( 47 - 63 HZ ) - 3200 WATT / 4000 VA

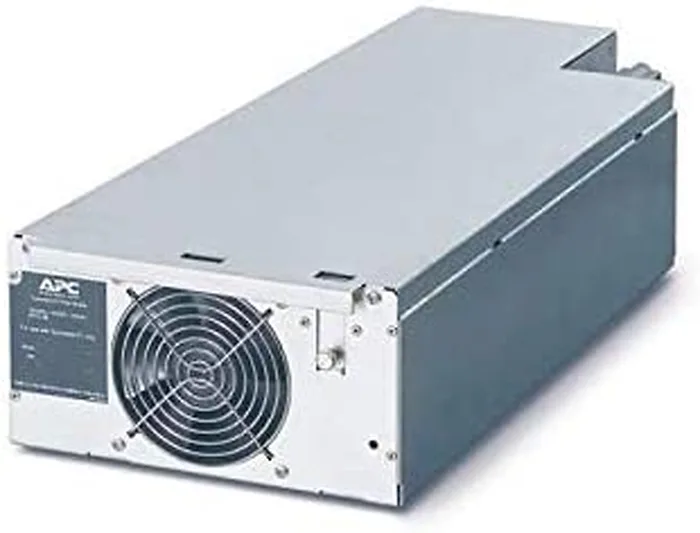

APC Symmetra LX 4kVA Power Module, 200/208V with high density, double-conversion on-line power protection

Output
Output Power Capacity :3200 Watts / 4000 VA
Max Configurable Power :3200 Watts / 4000 VA
Nominal Output Voltage :100V, 120V, 200V, 208V
Output Voltage Note :Configurable for 120/208 or 120/240 output voltage
Output Voltage Distortion :Less than 5% at full load Output Frequency (sync to mains) :47 - 63 Hz
Other Output Voltages :240
Crest Factor :up to 5 : 1
Topology :Double Conversion Online
Waveform Type :Sine wave
Output Connections :(1) Hard Wire 4-wire (2PH + N +G) Input
Nominal Input Voltage :200V, 208V
Input Frequency :45 - 65 Hz (auto sensing)
Input voltage range for main operations :155 - 276V
Other Input Voltages :240V Color
Silver

Conformance
Regulatory Approvals :CSA, FCC Part 15 Class A, UL 1778 Item Dimension (L"xW"xH"):
31.10 x 17.30 x 13.00

Weight:
42.13 lb

Warranty Information:
2 years repair or replace
