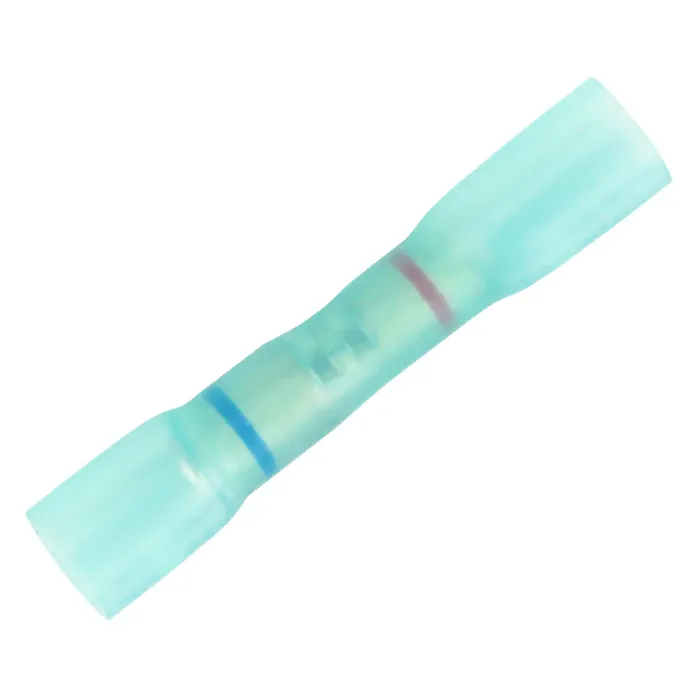

Blue Heat Shrink Step-Down Butt Splices - 22-14 AWG - 100 Pack

Blue Heat Shrink Step-Down Butt Splices - 22-14 AWG - 100 Pack

Connecting wires of different gauges is often necessary in electrical systems. Our step-down butt splices with blue heat shrink are designed for securely connecting wires ranging from 22-18 AWG to 16-14 AWG, providing enhanced protection and durability.

These butt splices feature a heat-shrink design that ensures moisture protection against harsh environmental conditions. An adhesive liner within the heat shrink creates a rugged and sealed connection, safeguarding against abrasion, water, salt, and corrosive substances. The colored indicator on the tubing specifies the size of the connector, with blue indicating compatibility with 16-14 AWG.

Users can easily connect wires of different sizes or multiple wires of the same gauge efficiently. Proper preparation includes stripping the wires to the correct length, inserting them into the butt splice, and crimping securely. After the crimping process, conduct a tug test to confirm a solid connection before applying heat to activate the shrink tubing. This simple process yields a robust connection with excellent environmental protection, making our butt splices a reliable choice for various applications.

Features:

• Moisture protection against water, condensation, and corrosion
• Enhanced durability and strain relief for rugged use
• Easy installation for quick and reliable connectivity

Compliances:

• UL
• CSA
• RoHS

Technical Specifications:

• Shrink Ratio: Approx. 3:1 at 135 degrees C
• Operating Temperature: -55 degrees C to 125 degrees C
• Volume Resistivity: 10¹⁵ Ohm-cm³
• Dielectric Strength: 900V/mil
• Voltage Rating: 600V
• Wire Gauge (AWG): 22-18 AWG to 16-14 AWG
• Max. Wire Insulation Outer Diameter: 0.21 in.
• Heat Shrink Color: Blue

*Sold as a pack of 100
