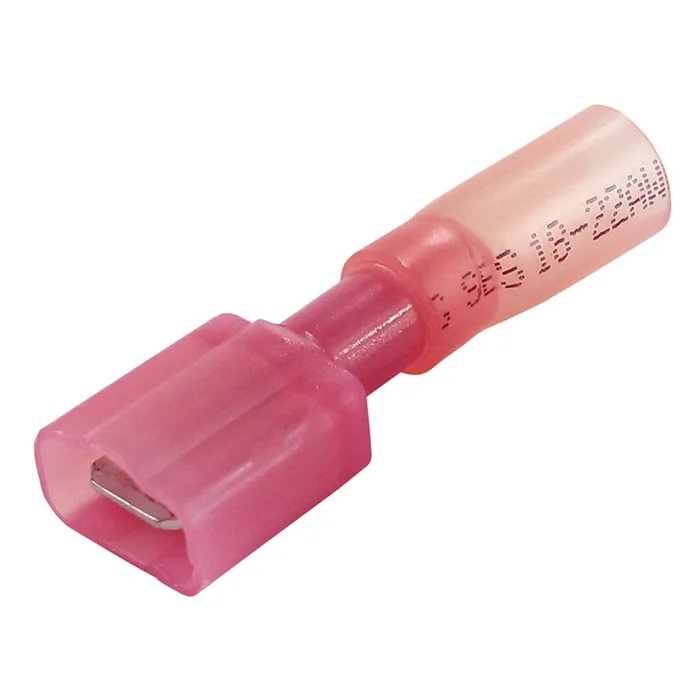

Pacer Fully-Insulated Male Disconnect Terminal - Red - 100 Pack

Creating a solid connection is crucial in every electrical system. Pacer's heat-shrink fully insulated disconnect terminals allow for easy disconnection and reconnection, simplifying maintenance tasks. These terminals are designed to withstand challenging environments with superior moisture protection, ensuring reliability.

The built-in heat-activated adhesive liner provides an environmentally sealed connection for wires ranging from 22 AWG to 10 AWG, safeguarding against water, oil, gas, and corrosion. The robust design also protects connectors from physical abuse and abrasion. Easy disconnection makes equipment removal or field service maintenance hassle-free.

The insulation color indicates suitable wire gauge: Red for 22-18 AWG, Blue for 16-14 AWG, and Yellow for 12-10 AWG. Choose the right heat shrink fully insulated disconnect terminal by consulting a Pacer expert if needed.

Features:

• Protects connections from moisture, salt spray, and corrosion
• Enhances vibration resistance in harsh environments
• Offers strain relief for added durability

Characteristics:

• Shrink Ratio: Approx. 3:1 at 135 °C
• Operating Temperature: -55 °C to 125 °C
• Volume Resistivity: 10^15 Ohm-cm³
• Dielectric Strength: 900-V/mil
• Voltage Rating: 600-V

Specifications:

• AWG: 22-18
• Disconnect/Bullet Size: 0.250 in.
• Insulation Color: Red
• Package Size: 100

Compliances:

• UL
• CSA
• RoHS
