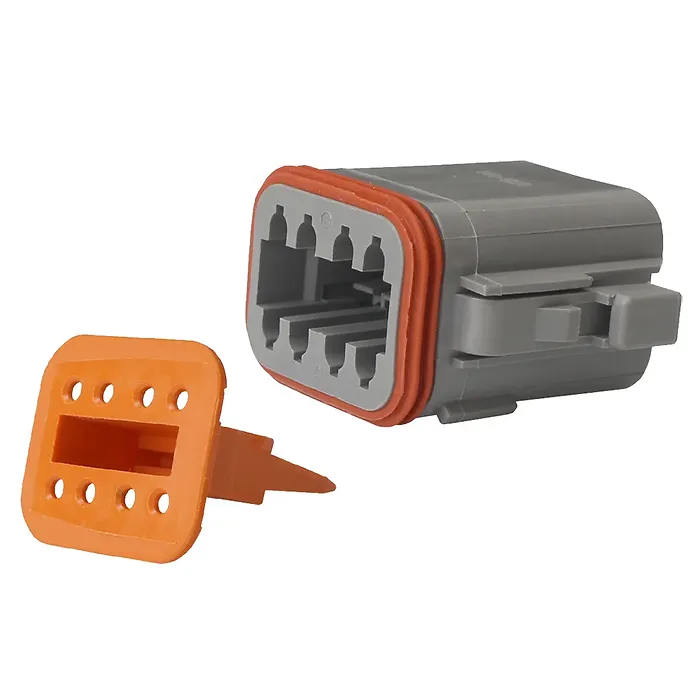

Pacer Deutsch DT Plug & Wedge Lock Kit - 8 Position - 5 Pack

Deutsch DT 8 Position Connector Lock Kit - 5 Pack

Ensuring secure electrical connections is vital, and Pacer's Deutsch Connectors are engineered for durability. The DT series connectors create environmentally sealed connections, providing waterproofing and resistance to vibration and shock. Specifically designed for 20-14 AWG applications, these connectors support the use of multiple size 16 contacts. Ideal for field use, they are simple to install, connect, and disconnect. This kit contains housing and wedge locks only. Pins and sockets must be purchased separately. For any inquiries, feel free to reach out to a Pacer expert.

Features:

• Includes housing (5 pieces) and wedge locks (5 pieces) for 8 cavities

Applications:

• Wire-to-wire connections
• Robust enclosed connectors with proven reliability

Characteristics:

• Wedgelocks for precise contact alignment and retention
• Redundant silicone seals for enhanced protection
• Contacts that are hand-insertable and removable

Compliances:

• Ingress Protection (IP) Level: IP67
• EU RoHS/ELV Compliant
• Standard UL-94 Recognized

Specifications:

• Number of Cavities: 8
• Cavity Style: Plug (socket)
• Package Size: 5
• Housing Material: Rectangular Plug, glass-fiber reinforced plastic
• Contact Size: 16 (13 Amp)
• Wire Size: 20-14 AWG
• Operating Temperature Range: -55°C to 125°C

• Kits include 5 housing pieces and 5 wedge locks
• Compatible with wire sizes 20-14 AWG
• Environmentally sealed with IP67 rating
• Flexible design suitable for various applications
