General Information

---

Manufacturer:Eaton Corporation
Manufacturer Part Number:B118-004-UHD-2
Manufacturer Website Address:http://www.eaton.com
Brand Name:Tripp Lite by Eaton
Product Model:B118-004-UHD-2

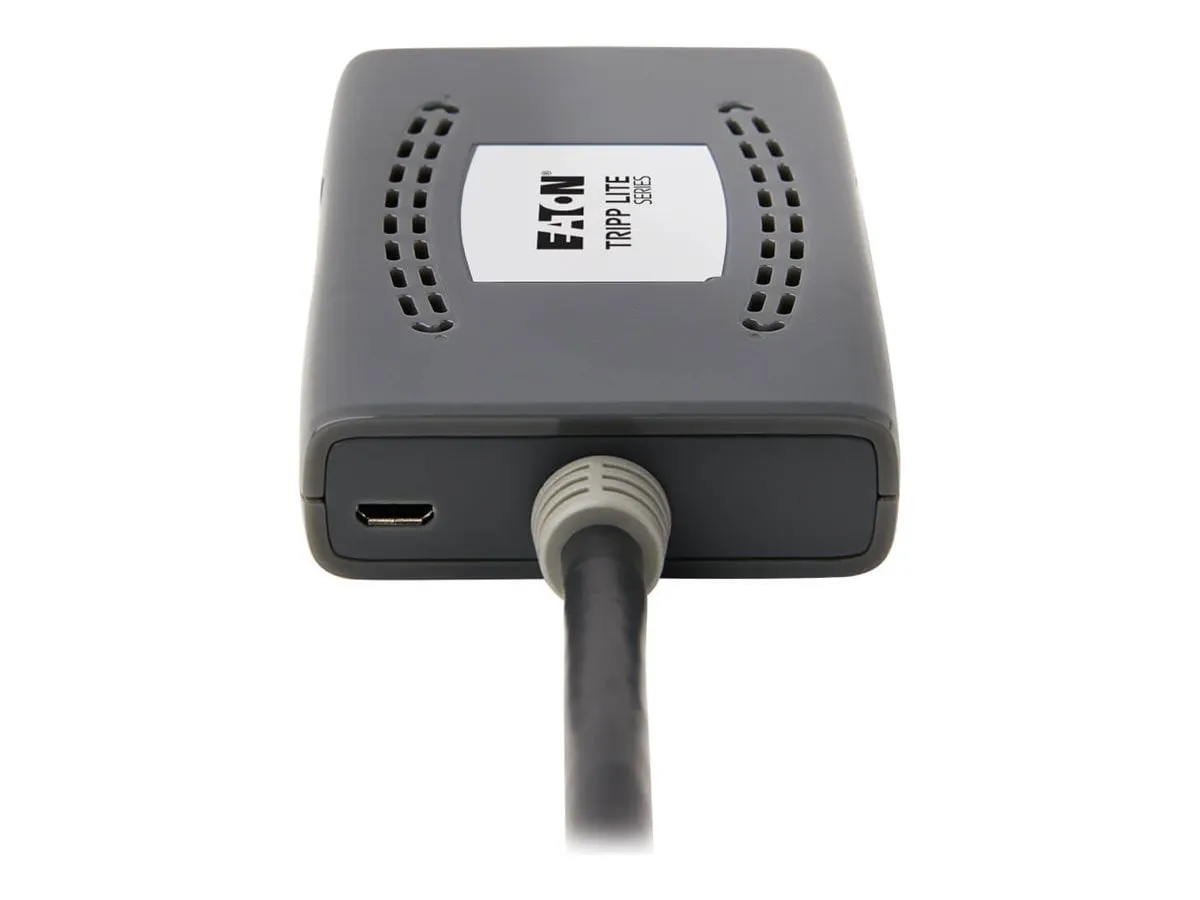

Product Name:B118-004-UHD-2 4-Port 4K 3D HDMI Splitter
Marketing Information:4-Port HDMI splitter transmits Ultra High Definition (UHD) 4K x 2K audio/video (A/V) from an HDMI source to four HDMI displays at the same time. Plug-and-play technology makes installation quick and simple - with no software or drivers to install. Using standard 28 AWG HDMI cabling, this splitter can transmit full 3D and a 4K x 2K (3840 x 2160) signal up to 15'. It supports a wide range of audio formats, including DTS-HD, Dolby TrueHD, Dolby Digital Plus, and LPCM 7.1-channel surround sound as well as 36-bit Deep Color (12 bits per channel). Splitter also supports HDMI 2.0 and HDCP 2.2 to ensure its compatibility with the latest audio/video hardware.

Packaged Quantity:1 Each
Product Type:Signal Splitter

Video

---

Maximum Video Resolution:3840 r 2160

Interfaces/Ports

---

HDMI In:Yes
HDMI Out:Yes
Number of HDMI Inputs:1
Number of HDMI Outputs:4

Media & Performance

---

Maximum Operating Distance:22.97 ft

Power Description

---

Input Voltage:

• 120 V AC
• 230 V AC
• 5 V DC

Physical Characteristics

---

Product Material:Metal

Miscellaneous

---

Package Contents:

• B118-004-UHD-2 4-Port 4K 3D HDMI Splitter
• External Power Supply (Input: 100-240V, 50/60 Hz, 0.35A; Output: 5V 2A)
• International Plug Adapters (North America, Europe, U.K. and Australia)
• Mounting Hardware
• Owner's Manual

Country of Origin:Taiwan
TAA Compliant:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty:3 Year
