General Information

---

Manufacturer:Eaton Corporation
Manufacturer Part Number:INTERNET900U
Manufacturer Website Address:http://www.eaton.com
Brand Name:Tripp Lite by Eaton
Product Line:Internet Office
Product Model:INTERNET900U

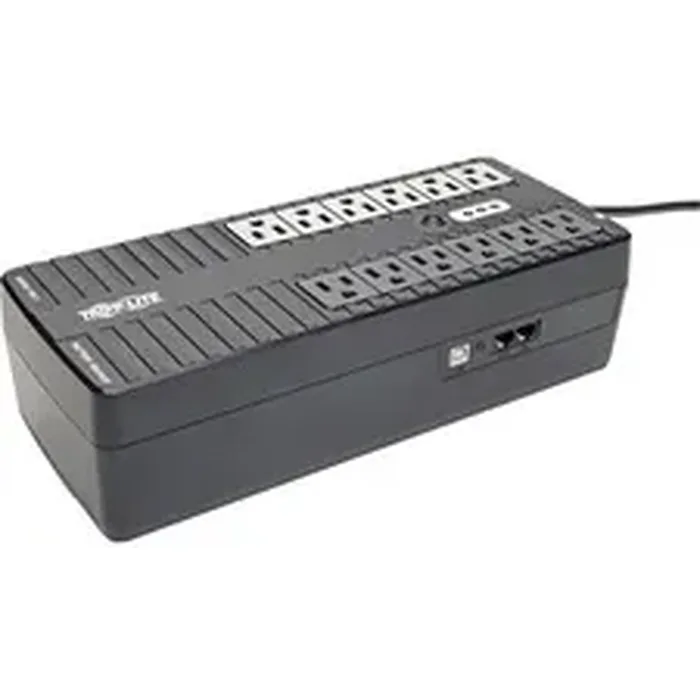

Product Name:INTERNET900U 900VA Ultra-compact Desktop/Tower/Wall Mount UPS
Marketing Information:UPS offers standby protection for PCs and peripherals to prevent data loss and system downtime by providing battery-supported AC output during brownouts and blackouts. 12 widely spaced output receptacles in a compact, mountable housing accommodate large transformer plugs without blocking outlets. Six outlets provide full battery support and surge suppression. Six additional surge suppression-only outlets are ideal for accessories not requiring battery support. Single-line telephone suppression jacks protect directly connected modems, fax machines, cordless phones or other peripherals sharing a standard dialup or DSL phone line connection. USB communications interface with PowerAlert monitoring software (via web download) and cabling allows a safe, unattended system shutdown. Audible alarm and front panel LEDs offer status information regarding line and battery power operation. 900VA/480W power handling ability supports entry-level PCs for up to 45 minutes during power failures.

Packaged Quantity:1 Each
Product Type:Standby UPS

Technical Information

---

Plug/Connector Type:NEMA 5-15P
Receptacle Type:NEMA 5-15R
Receptacle Detail:6 x NEMA 5-15R
Number of Surge-only Outlets:3
Dataline Protection:RJ-11
Protection Type:

• Black Out
• Brownout

Overload Protection:Yes
Transfer Time:6 ms
Phase:Single Phase
Application/Usage:

• Home/Office
• Computer
• Router
• Audio Receiver
• DVR
• Printer
• Media Player
• HDTV
• Blu-ray Player

Power Description

---

Load Capacity (VA):900 VA
Load Capacity (Watt):480 W
Input Voltage:120 V AC
Output Voltage:

• 110 V AC
• 115 V AC
• 120 V AC

Output Frequency:60 Hz
Waveform Type:Pure Sine Wave
Surge Energy Rating:316 J
Output Power Factor:0.53

Management

---

Alarm:

• Overload
• UPS Fault
• Low Battery

Interfaces/Ports

---

USB:Yes
USB (HID Compliant) Port:Yes

Battery Information

---

DC System Voltage:12 V DC
Battery Characteristics:Valve-regulated
Battery Chemistry:Lead Acid
Backup/Run Time (Full Load):1.70 Minute
Backup/Run Time (Half Load):7.80 Minute
Typical Battery Recharge Time:8 Hour
Replaceable Battery:Yes

Environmental Conditions

---

Minimum Operating Temperature:32°F (0°C)
Maximum Operating Temperature:104°F (40°C)
Storage Temperature:5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation:9842.52 ft

Physical Characteristics

---

Color Family:Black
Product Color:Black
Height:3.4"
Width:5.1"
Depth:12.2"
Form Factor:Ultra-compact Desktop/Tower/Wall Mount
Weight (Approximate):8.10 lb

Miscellaneous

---

Package Contents:

INTERNET900U 900VA Ultra-compact Desktop/Tower/Wall Mount UPS

USB Cable

Owner's Manual

Additional Information:

• Appearance: Attractive black ultra-compact housing

Output voltage regulation:

• Line Mode: Passes sine wave line voltage from 98-139V to connected equipment unchanged
• Battery Mode: PWM sine wave output 115V +/-5%

Output frequency regulation:

• Line Mode: Passes line frequency of 60Hz +/-10%
• Battery Mode: Inverter output regulated to 60zHz +/-0.5Hz

Certifications & Standards:

• Energy Star
• UL Listed Certification

Software Included:PowerAlert Software
Recycled:No
Assembly Required:No
Energy Star:Yes
Country of Origin:Vietnam
Environmentally Friendly:Yes
Energy Efficiency Certification:ENERGY STAR 2.0
Environmental Compliance:Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty:2 Year
Additional Warranty Information:

• 2 year and

• 100,000 connected equipment warranty
