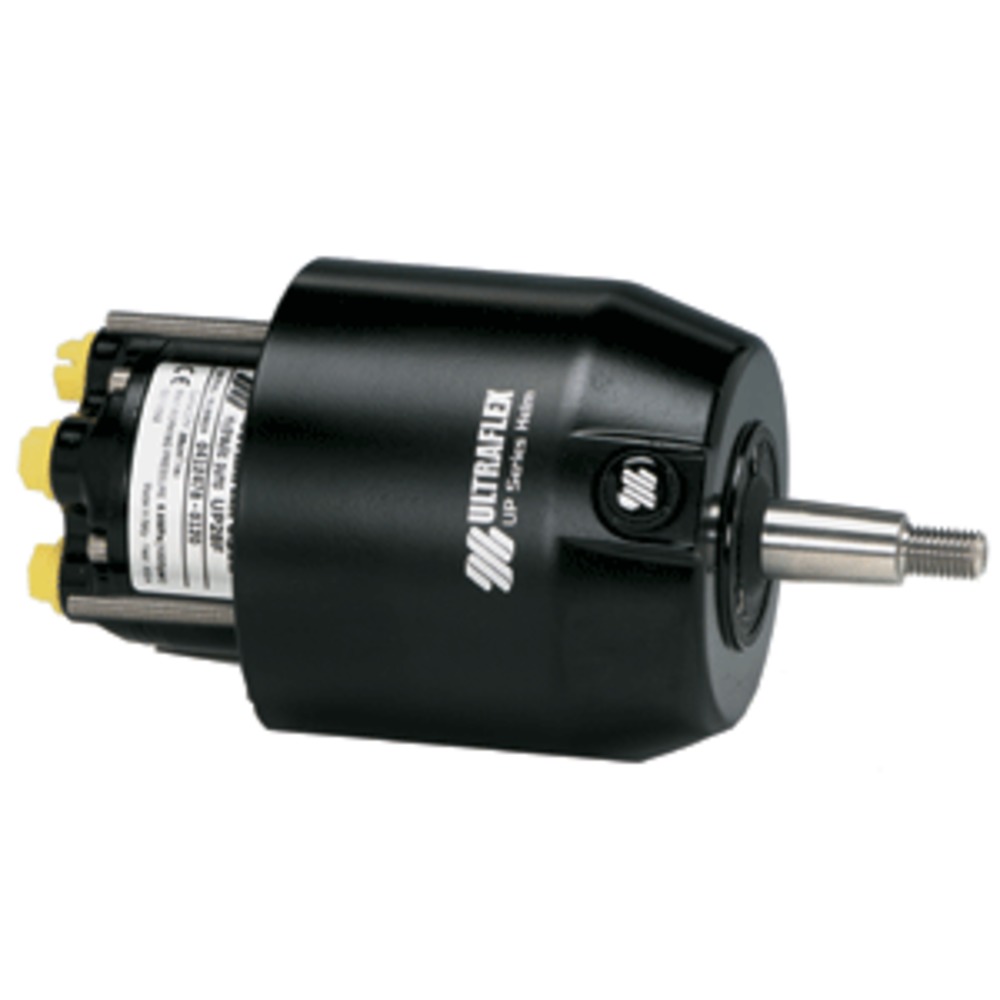

UP28R Rear Mount Helm 1.7 cu. 3/4" Tapered Stainless Steel Shaft

Features:

• Available in four different displacement sizes
• Compact design
• Ball bearing piston race
• Built-in lock valve for positive rudder lock
• Integral relief valve for over-pressure protection
• 3/4” tapered stainless steel shaft
• Easily accessible lock valve and shaft seal for replacement
• Cast iron cylinder rotor for greater durability and longer life
• 1/4" NPT fitting for 3/8" tube
• Includes 90° adjustable fittings for 3/8” tube and white bezel
• UP45R pump is ideal for double cylinder outboard applications
• UP45 pump is available also for inboard application
• X68 (optional) - 40894Z Chrome bezel
• KITF (optional) - 39664Y Remote fill adapter

Specifications:

• Mounting: Retro-cruscotto
• Displacement/Revolution: 28 cc-1.7 cu in
• # of Pistons: 5
• Relief Valve Setting: 70 Bar - 1000 PSI
• Maximum Wheel Diameter: 710mm - 28"
• Weight: 5kg - 11 lbs.

UP28R Rear Mount Helm 1.7 cu. 3/4 Tapered Stainless Steel Shaft

Features:

• Available in four different displacement sizes
• Compact design
• Ball bearing piston race
• Built-in lock valve for positive rudder lock
• Integral relief valve for over-pressure protection
• 3/4” tapered stainless steel shaft
• Easily accessible lock valve and shaft seal for replacement
• Cast iron cylinder rotor for greater durability and longer life
• 1/4 NPT fitting for 3/8 tube
• Includes 90° adjustable fittings for 3/8” tube and white bezel
• UP45R pump is ideal for double cylinder outboard applications
• UP45 pump is available also for inboard application
• X68 (optional) - 40894Z Chrome bezel
• KITF (optional) - 39664Y Remote fill adapter

Specifications:

• Mounting: Retro-cruscotto
• Displacement/Revolution: 28 cc-1.7 cu in
• # of Pi
