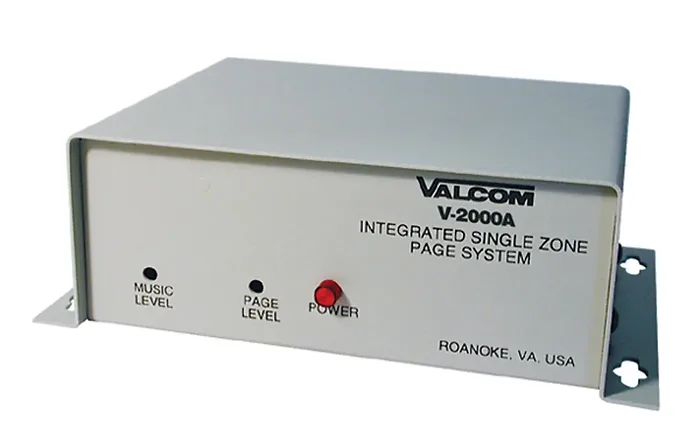

This 1 Zone one-way analog page control system is designed for seamless communication and background music integration. It features voice-operated mute capabilities for background music, ensuring that important announcements take precedence.

The system includes a page override function for special priority announcements and offers a battery backup input to maintain operation during power outages. It is UL listed for safety and reliability.

Accessibility options include a page port, PBX loop-start trunk port, electronic or 1A2 line key (line card required), or a dedicated single-line phone set. The system has an input impedance of 600 ohm and supports music source impedance ranging from 4 to 600 ohm, with a nominal music input level of -10dBm.

The DC output is -24 Vdc at 600 mA, and power requirements are 120 Vac/1A. This system is compatible with VALCOM power units (+12).

• 1 Zone one-way analog page control
• Background music input with voice-operated mute
• Page override for special priority announcements
• Battery back-up input for uninterrupted service
• Built-in power supply for easy installation
• UL listed for safety and reliability
• Access ports: page port, PBX loop-start trunk port, and dedicated single-line phone set
• Input impedance: 600 ohm
• Music source impedance: 4 to 600 ohm
• Music input level: -10dBm nominal
• DC output: -24 Vdc @ 600 mA
• Power requirements: 120 Vac/1A
• Compatible with VALCOM POWER UNITS (+12)
