Product Information
- Part Number: K-1500-7
- Manufacturer: Viking Electronics
- Product Name: Viking Vandal Resistant Stainless Panel Phone D K-1500-7
Product Description
The Viking K-1500-7 is a durable, vandal-resistant panel telephone designed for simple, point-to-point communication in demanding environments. It features a heavy-gauge, marine-grade 316 stainless steel panel with permanent laser-etched graphics, an armored handset cable, and an all-metal cradle, making it ideal for high-abuse applications like kiosks, automated tellers (ATMs), courtesy phones, emergency call stations, and gate entrances. This model operates on standard C.O. (Central Office) lines or analog PABX/KSU stations and is telephone line powered, eliminating the need for an external power supply. It is designed for flush mounting to a standard double-gang electrical box, with optional surface-mount and weatherproof enclosures available.
Product Specifications
- Type: Vandal Resistant Panel Phone
- Panel Material: 14 gauge marine grade 316 stainless steel (0.125" thick)
- Handset: Heavy-duty black, hearing aid compatible, amplified handset with sealed push-button volume control
- Handset Cord: 36-inch (91 cm) armored cable
- Mounting: Flush mounts to a standard double gang electrical box (not included); optional VE-5x10 or VE-9x20 surface/weatherproof boxes available
- Power: Telephone line powered (20V DC / 18mA minimum)
- Connections: 2 x gel-filled butt connectors
- Operating Temperature: 0?C to 32?C (32?F to 90?F)
- Humidity: 5% to 95% non-condensing
- Dimensions (H x W x D): 10.0" x 5.0" x 4.0" (254 mm x 127 mm x 102 mm)
- Shipping Weight: 3.7 lbs (1.7 kg)
- Features: ['No dial pad (designed for ringdown or hot-line applications)', 'Permanent laser-etched graphics', 'Metal heavy-duty vandal resistant hookswitch', 'Handset receiver volume adjustment with programmable default level', "Can be used with Viking's DLE-200B Line Simulator for point-to-point communication", "Can be combined with Viking's K-1900-5 Hot-Line Dialer if dialing is required"]
- Certifications: NDAA Compliant, TAA Compliant

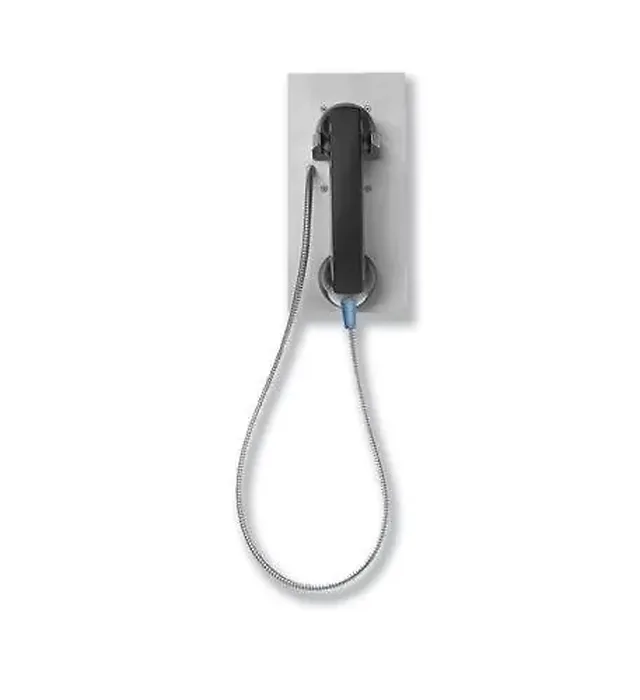

Product may differ from image shown
The K-1500 Series provides simple vandal resistant, communication in a flush mount, stainless steel, panel telephone. The K-1500-7 and K-1500-6A work ideally with Viking's DLE-200B line simulator or on a dedicated ringdown circuit. If dialing is necessary, use Viking's K-1900-7 or combine the K-1500 Series phones with Viking's K-1900-5 Hot-Line Dialer. The K-1500 Series phones consist of a heavy gauge stainless steel panel, an armored cable, a heavy duty black hearing aid compatible amplified handset, and an all metal cradle. Both phones are designed to mount to a standard double gang electrical box.Technical InformationTotal Number of Phone Lines: 1Hearing Aid Compatible: YesFeatures: Hotline DialingInterfaces/PortsPhone Line (RJ-11): YesPhysical CharacteristicsForm Factor: Flush MountHeight: 6"Width: 10.3"Weight (Approximate): 3.40 lb
