HARDWARE
Audio
Yes
AV Input
HDMI
AV Output
HDMI
Cabling
HDMI
Industry Standards
HDMI 2.0
Ports
4
Rack-Mountable
Yes
PERFORMANCE
Audio Specifications
7.1 Surround Sound
Bandwidth
18Gbps
Maximum Digital Resolutions
3840 x 2160 at 60Hz
4096 x 2160 at 24Hz
Supported Resolutions
1920 x 1200 (1080p)
3840 x 2160 (UHD 4K)
4096 x 2160
Wide Screen Supported
Yes
CONNECTOR(S)
Connector A
4 - HDMI (19 pin) Female
Connector B
4 - HDMI (19 pin) Female
Connector Type(s)
1 - DB-9 (9 pin, D-Sub) Female
1 - RJ-45 Female
1 - IrDA (Infrared, SIR/FIR)
1 - USB Mini (4 pin)
INDICATORS
LED Indicators
1 - Power LED
4 - Active Port LED
POWER
Input Current
1.5
Input Voltage
100 to 240 AC
Output Current
2.7
Output Voltage
24 DC
Power Source
AC Adapter Included
ENVIRONMENTAL
Humidity
20-90%
Operating Temperature
0oC to 40oC (32oF to 104oF)
Storage Temperature
-20oC to 60oC (-4oF to 140oF)
PHYSICAL CHARACTERISTICS
Color
Black
Enclosure Type
Metal
WHATS IN THE BOX
Included in Package

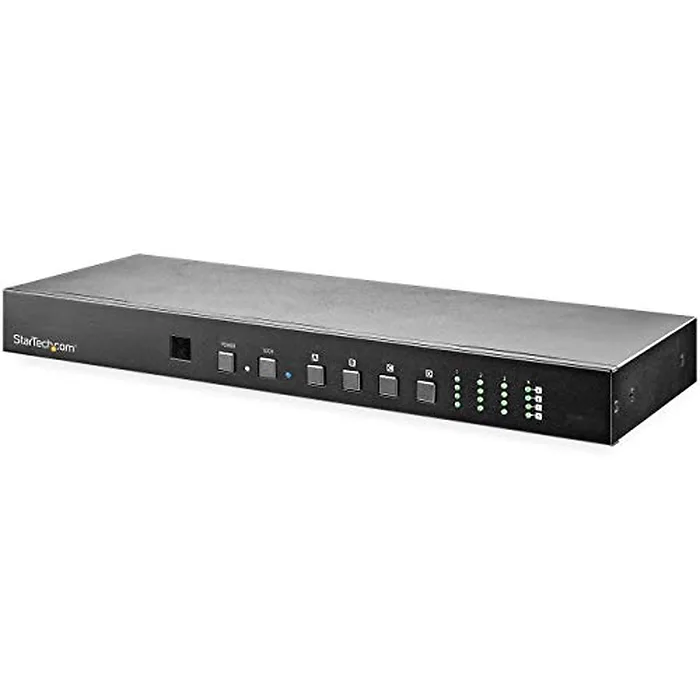

1 - HDMI Matrix Switch
1 - Remote Control
1 - IR Receiver
2 - Mounting Brackets
1 - Universal Power Adapter (NA/JP, EU, UK, ANZ)
1 - User Manual
Item Dimension (L"xW"xH")
21 x 12 x 4
Weight
8.00 LB
Warranty Information
2 Year Warranty
