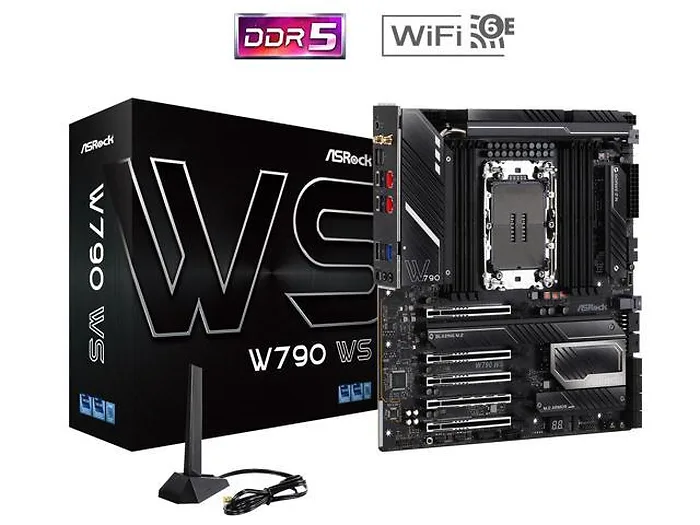

• Supports 4th Gen Intel® Xeon® W W-3400 and W-2400 Processors (LGA4677)
• 20+2 Power Phase, 90A SPS Design
• 14 Layer Server-Grade Ultra Low-Loss PCB
• Supports DDR5 ECC, buffered memory up to 6800+(OC)*
• 4 PCIe 5.0 x16, 1 PCIe 4.0 x16
• 4 Blazing M.2 (PCIe Gen5 x4), 1 U.2 mini SAS Connector (PCIe Gen4 x4), 8 SATA3
• 2 USB4 Thunderbolt™ 4 Type-C
• 1 USB 3.2 Gen2x2 Type-C (Front),
• 2 USB 3.2 Gen2 (Rear),
• 8 USB 3.2 Gen1 (4 Rear, 4 Front),
• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Dual Marvell AQUANTIA® 10 GbE LAN
• Intel® i225LM 2.5 GbE LAN
• 802.11ax WiFi 6E + Bluetooth 5.3
• Supports ASRock Blazing Quad M.2 Card
• *Actual support may vary by CPU

Product Tags

ASRock MB W790 WS W790 LGA4677 Max2TB DDR5 PCIe EATX Retail
