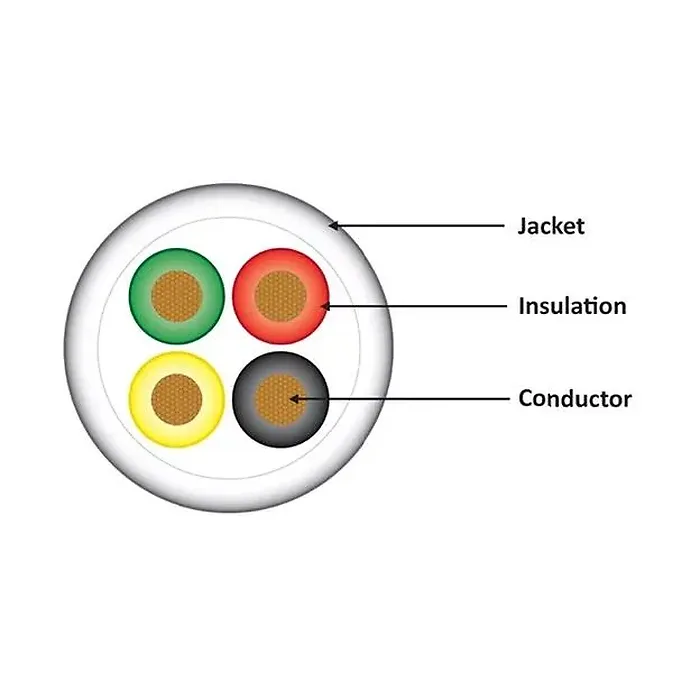

Construction: 18 AWG, 7 strand bare copper, 4 conductors twisted and jacketed.

Insulation: SR-PVC.

Color Code: Black, Red, White, Green.

Shield/Drain: Unshielded.

Assembly: 4 conductors twisted and jacketed.

Jacket: PVC.

Diameter: 0.182 Nominal.

UL Rating: CMR or CL3R or FPLR; For plenum rated version, see spec. No. P40031.

Capacitance: 25.4 pF/ft Nom.

Velocity of Propagation: 55%.

Impedance: 73 Ohms.

Resistance: 6.92 Ohms D.C. per 1000 ft @ 68 deg. F maximum.

Temperature/Voltage: 75C / 300V (up to 300V; power-limited systems per NEC Art. 725 or 800).

• 18 AWG, 7 strands of bare copper for excellent conductivity.
• Twisted and jacketed construction for enhanced performance.
• Available in a variety of colors for easy identification.
• Unshielded for flexibility in installation.
• Rated for 75C temperature and 300V maximum voltage.
• Complies with UL standards for safety and reliability.
