WiFi NMEA 0183 to NMEA2000 Gateway

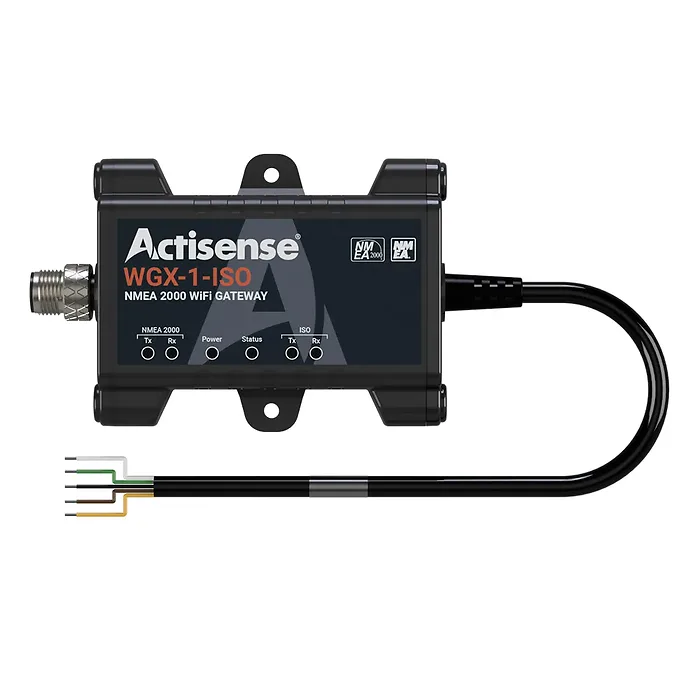

The WGX-1 is a robust NMEA 0183 and NMEA 2000 WiFi Gateway that supports bi-directional data conversion.

It enables seamless data transfer from NMEA 2000 backbone to any Wi-Fi enabled device, including laptops, tablets, and smartphones. Leveraging the acclaimed Actisense conversion engine, the WGX-1 provides reliable data interoperability between NMEA 0183 and NMEA 2000 systems. The device can also operate as a wired gateway, facilitating data communication between existing NMEA 0183 and NMEA 2000 instruments.

Equipped with built-in message conversion capabilities, the WGX-1 allows various vessel data, such as position, speed, course, and engine metrics, to be transmitted to connected devices effortlessly.

The internal micro SD card (not included) enables data logging for post-voyage analysis, aiding in race performance evaluation, logbook generation, and voyage detail sharing.

The Actisense-i diagnostic toolkit that comes with the WGX-1 aids users in monitoring and diagnosing electronic network issues, improving overall system safety and reliability.

Designed with durability in mind, the device features an IP67 rated case equipped with diagnostic LEDs, enhanced password security, and an integrated antenna for optimal connectivity.

• OPTO-isolated input and ISO-Drive output for secure interfacing
• Data transfer rates up to 230,400 baud
• Integrated 0.75m ISO cable for easy installation
• Advanced configuration options via Actisense Toolkit
• Fast-heading support at 10Hz for real-time applications
• Actisense-i network health checker for monitoring NMEA 2000 status
• Supports both TCP and UDP data streaming
• Compatibility with a wide range of mobile applications
• Remote firmware updates for device longevity
• Rugged IP67 casing for environmental resilience
• Diagnostic LEDs for input and output status indication
