Lectrotab XKA Trim Tab Kit with Rocker Switch - 12 x 24

The Lectrotab XKA Trim Tab Kit is specifically designed for aluminum-hulled boats, offering an economical yet efficient solution for enhancing boat performance. These trim tabs are constructed with a robust "no-break" polypropylene hinge and feature a durable epoxy coating to ensure long-lasting corrosion resistance.

This maintenance-free design integrates a precision-engineered actuator for quiet operation, complete with a sealed housing for easy installation without internal boat components. With no hydraulic oil to leak and an innovative flat rocker switch that prevents water intrusion, this kit guarantees reliable operation and safety.

Key Features:

• Corrosion-resistant epoxy coating on all tabs.
• Equivalent strength to 10-gauge stainless steel.
• "No-break" polypropylene hinge tested for over 300,000 cycles.
• Upper ram seal protected from fouling or barnacle growth.
• Internal pressure equalization system for optimal performance.
• Integrated brake system to prevent unwanted tab movement.
• Quiet operational characteristics.
• Actuators are fully load tested to push 1000 lbs of force.
• Non-corrosive, non-metallic structure that resists sun and water damage.

Technical Details:

• Trim Tab Size (L x W) - 12" x 24" (30 x 61 cm)
• Suitable for Boat Lengths - 28' to 48' (8.5 to 14.5 M)
• Material Used - Marine grade 6005-T5 Aluminum Alloy
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Cable Length - 23' (7 M)
• Vertical Height of Actuator - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm)
• Mounting Hole Cutout - 2.25" x 2" (57.5 x 50 mm)
• Operating Voltage of Rocker Switch - 12 or 24 V

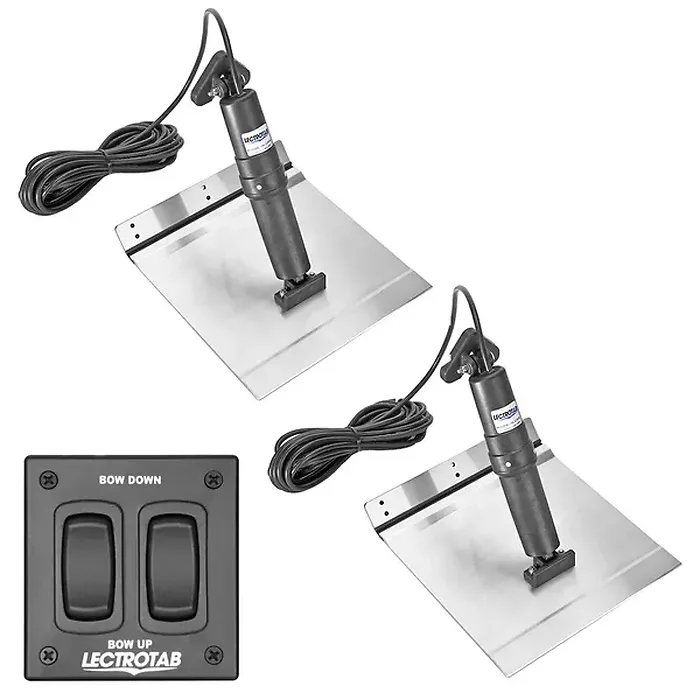

Included in the Kit:

• One (1) Flat Rocker Switch
• Two (2) Aluminum Alloy Trim Tabs
• Two (2) Actuators with 23' (7 M) Cables
• Installation Manual

*Sold as a complete kit

• Corrosion-resistant epoxy coating on all tabs.
• Equivalent strength to 10-gauge stainless steel.
• "No-break" polypropylene hinge tested for over 300,000 cycles.
• Upper ram seal protected from fouling or barnacle growth.
• Internal pressure equalization system for optimal performance.
• Integrated brake system to prevent unwanted tab movement.
• Quiet operational characteristics.
• Actuators are fully load tested to push 1000 lbs of force.
• Non-corrosive, non-metallic structure that resists sun and water damage.
