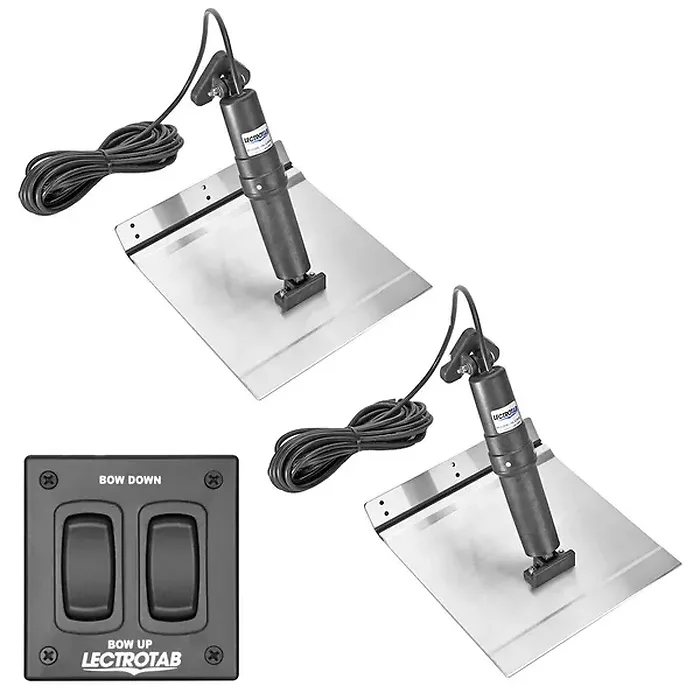

XKA Aluminum Trim Tab Kit with Rocker Switch - 9 x 18

The Lectrotab Aluminum Trim Tab Kit is engineered specifically for aluminum hulled boats, offering an economical yet robust option for various marine applications. Each tab features a durable, corrosion-resistant epoxy coating and is equipped with a heavy-duty "no-break" polypropylene hinge designed to withstand over 300,000 cycles at a 90° bend.

This kit includes a precision-engineered actuator that operates quietly and is designed to be maintenance-free, eliminating the concerns of leaks associated with hydraulic systems. The actuator is securely housed in a non-metallic, permanently sealed unit, ensuring that no components need to be installed inside the boat.

The innovative flat rocker switch includes improved sealing for water resistance and a recessed design to withstand accidental breakage. The circuitry allows for an "instant stop" function, which prevents over-running of the actuator when the switch is released.

Specifications:

• Trim Tab Size (L x W) - 9" x 18" (23 x 46 cm)
• Boat Length Compatibility - 21' to 30' (6.5 to 9 M)
• Tab Material - Marine grade 6005-T5 Aluminum Alloy
• Actuator Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm)
• Rocker Switch Cutout Dimensions (H x W) - 2.25" x 2" (57.5 x 50 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

• Corrosion-resistant epoxy coating on all tabs
• Strength equivalent to 10 gauge stainless steel
• Durable polypropylene hinges tested over 300,000 cycles
• Upper ram seal protected from fouling and barnacle growth
• Internal pressure equalization system included
• Internal brake system for stable performance in motion
• Quiet operational performance
• Fully load-tested actuators can push up to 1000 lbs of force
• Non-metallic structure prevents corrosion and sun damage
