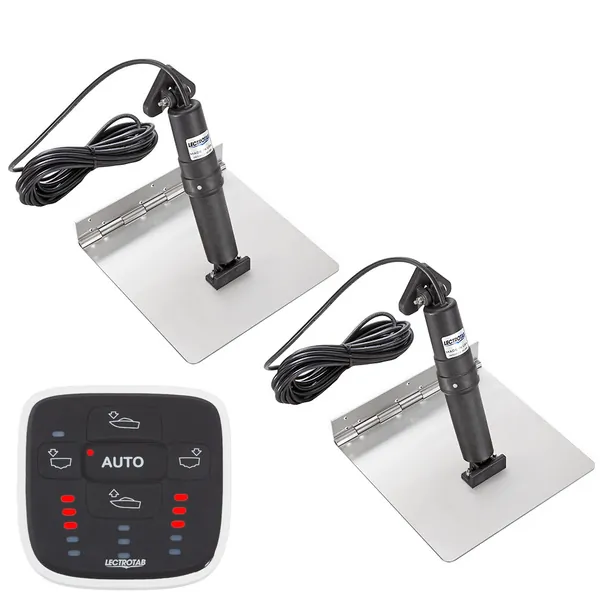

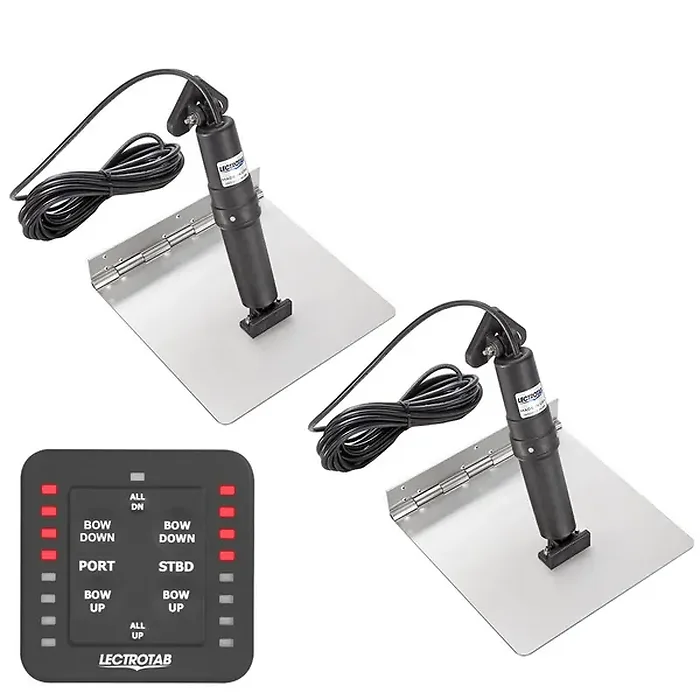

XKA Trim Tab Kit - Stainless Steel with One-Touch Control

This stainless steel trim tab kit offers unmatched strength and reliability with a continuous rolled and pinned hinge design that eliminates the need for welding. Engineered for quiet operation, it features a maintenance-free non-hydraulic design, ensuring corrosion resistance and accurate tab positioning.

Self-contained for easy installation, it utilizes an actuator sealed in a non-metallic housing, requiring no internal components on the boat. Unlike hydraulic systems, there is no oil leakage risk, and the actuator includes a versatile transom mounting bracket.

With a one-touch leveling LED control, this system places complete control of your trim tabs at your fingertips.

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 24" (30 x 61 cm)
• Boat Length - 28' to 48' (8.5 to 14.5 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) One-Touch Control
• Two (2) Stainless Steel tabs
• Two (2) actuators with 23' (7 M) cables
• Instruction Manual

*Sold as a Kit

• Continuous rolled and pinned hinge for added strength
• Upper ram seal location designed to withstand fouled ram
• Internal pressure equalization system
• Integrated brake system to prevent tab movement under way
• Quiet operation for better performance
• Fully load tested actuators capable of pushing 1000 lbs
• Corrosion-resistant non-metallic structure
