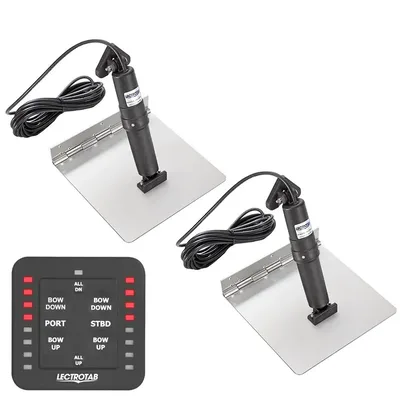

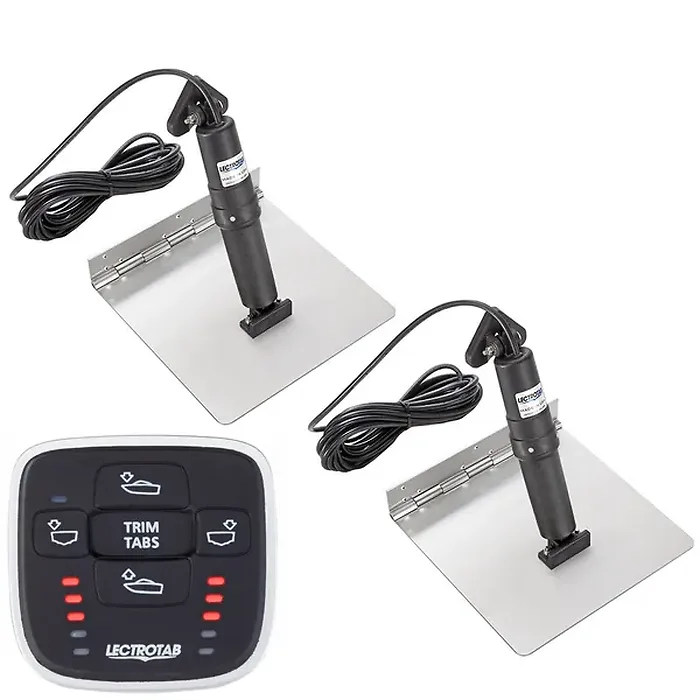

XKA Stainless Steel Trim Tab Kit with Control - 9 x 9

The Lectrotab XKA stainless steel trim tab kit excels in strength and reliability. Each tab features a continuous rolled and pinned hinge, which enhances durability and eliminates the need for welding.

This kit is designed with a precision-engineered actuator for quiet, non-hydraulic operation, requiring no maintenance. The system is completely corrosion-resistant and ensures precise tab positioning while providing maximum lift force. Installation is simplified as the actuator is housed in a non-metallic, permanently sealed casing that requires no internal components in the boat.

A significant advantage over hydraulic systems is the absence of oil leaks. The actuator setup features either a standard or low-profile transom mounting bracket.

The included Lectrotab control is microprocessor-based, allowing simultaneous movement of both tabs with a single button press. It features LED indicators for tab positions, which automatically adjust brightness based on the environment.

Features:

• Continuous rolled and pinned hinge for enhanced strength
• Upper ram seal position protected from debris or barnacle interference
• Internal pressure equalization system for reliable performance
• Built-in brake system to prevent tab movement during operation
• Quiet functionality
• Fully load-tested actuators capable of pushing 1000 lbs
• Durable, non-metallic design resistant to corrosion and UV damage

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 9" (23 x 23 cm)
• Recommended Boat Length - 14' to 19' (4 to 6 M)
• Made of - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
• Control Mounting Hole Cutout - 2" (50 mm)
• Control Operating Voltage - 12 or 24 V

In the Box:

• One (1) Manual Leveling Control
• Two (2) Stainless Steel tabs
• Two (2) actuators with 23' (7 M) cables
• Instruction Manual

*Sold as a Kit
