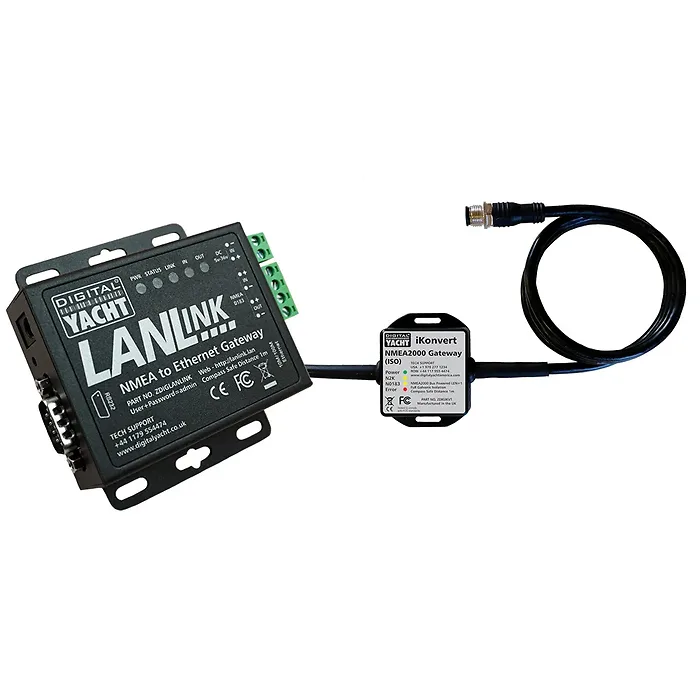

NMEA 2000 to Ethernet Gateway

As boats increasingly adopt wireless routers and internet connectivity solutions like Digital Yacht 4G Connect, the NMEA 2000 Ethernet Gateway allows seamless integration of NMEA data into the onboard network. This gateway enables connected devices and applications to access real-time data from the boat's systems.

Available in two versions for NMEA 0183 and NMEA 2000, it features a user-friendly web interface for easy configuration of NMEA baud rates and IP/Port settings through any web browser.

This device supports multiple TCP/IP connections and is bi-directional. Users can easily configure applications such as TZ iBoat, iNavX, NavLink, iSailor, Imray, and Weather 4D by entering the designated IP address and port for NMEA data streaming.

Key Features:

• NMEA 2000 to Ethernet gateway version for seamless integration.
• Ships with an iKonvert NMEA Certified gateway for effortless connection to the NMEA 2000 backbone.
• Low power operation with 12/24V DC compatibility.
• Easy connection to routers or devices via RJ45 Cat 5/6 patch cable.
• User-friendly web interface for straightforward setup via any web browser.
• Supports TCP/IP or UDP modes with up to 5 simultaneous connected devices in TCP/IP mode.
• Bi-directional communication capabilities.
• Raw mode with encapsulated PGNs or conversion mode supporting AIS, instruments, and GPS.
• RS232 port available for additional PC applications.
• Status indicators display power, data in-out, network link, and server status.

Set-Up Process:

• Access a menu-driven web UI through a client device, eliminating the need for complex software installation.
• Configure NMEA data for 4800 or 38400 baud rates and select between TCP/IP or UDP modes.
• Set up with either fixed or dynamic IP addresses.
• Status page available for system diagnostics.

Specifications:

• Power Supply: 10-35V DC (Approx. 50mA consumption at 12V DC).
• Network Port: Ethernet RJ45 10/100MB.
• IP Mode: Static or DHCP.
• Operating Modes: TCP/IP or UDP; capable of supporting up to 5 devices in TCP/IP mode.
• NMEA Input: Configurable at 4800 or 38400 baud (NMEA 0183).
• NMEA 2000 support via iKonvert gateway.
• Operating Temperature: -25 to +70 degrees C.
• LED Indicators: Power, Status, Link, Data In, Data Out.
• Additional Options: RS232 connectivity (non-concurrent with NMEA).
• Dimensions (W x H): 95mm x 86mm.

• NMEA 2000 to Ethernet gateway version for seamless integration.
• Ships with an iKonvert NMEA Certified gateway for effortless connection to the NMEA 2000 backbone.
• Low power operation with 12/24V DC compatibility.
• Easy connection to routers or devices via RJ45 Cat 5/6 patch cable.
• User-friendly web interface for straightforward setup via any web browser.
• Supports TCP/IP or UDP modes with up to 5 simultaneous connected devices in TCP/IP mode.
• Bi-directional communication capabilities.
• Raw mode with encapsulated PGNs or conversion mode supporting AIS, instruments, and GPS.
• RS232 port available for additional PC applications.
• Status indicators display power, data in-out, network link, and server status.
