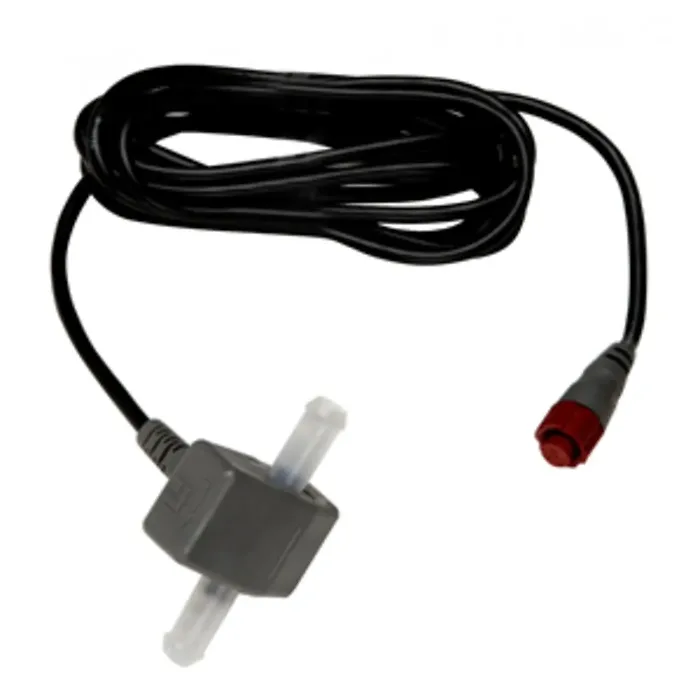

Lowrance N2K Fuel Flow Sensor

Model: 000-11517-001

• Displays current fuel rate or fuel flow
• Tracks fuel used, trip fuel used and seasonal fuel used
• For gasoline engines only. Does not work with diesel engines or any fuel system with a return fuel line or sump
• Calculates fuel economy with networked speed source (GPS or Speed Sensor)

The Fuel Flow Sensor tracks engine fuel flow, fuel used, trip fuel used and seasonal fuel used ? sharing the information with any compatible display unit connected to the NMEA 2000® network. With a speed source in the network, the Fuel Flow Sensor can also calculate fuel economy.

What's in the Box:

• Fuel Flow Sensor
• 2 1" hose clamps
• N2K T-connector

Fuel Flow Sensor with 10 cable & T-connector

Fuel Flow Sensor Gasoline ONLY. 1 required per engine. Up to 3 engines supported.

Outputs:

• Fuel Flow

• Tank Fuel Used

• Trip Fuel Used

• Seasonal Fuel Used


Cable Length:10
Fuel Line Diameter:3/8 (9.5mm) Inside Diameter
Flow Rate Measured:Optimized for 0.6-45 Gal/hr but can measure outside these values
Added Back Pressure to the fuel system:0.5 PSI at 20 Gal/hr; 1 PSI at 40 Gal/hr
Installation Location:Above the max level of the fuel tank, in-line after the fuel filter and any Ys or Ts in the line
Package:The Fuel Flow Sensor, N2K T and 2 (two) 1 hose clamps
Fuel Type:Gasoline only. The Fuel Flow Sensor does not operate diesel engine fuel systems
Hole required to route through a bulkhead:22mm (7/8)
Multiple Fule Flow sensors possible:Yes
