Freq. Khz	Power	Beam Width ( deg) LF//HF (-3dB)	Max Depth (ft)	Septh,Speed,Temp	# of Pins	Supported Deadrise / Transom Angles
80-130	600W	24/16	800	Depth,Temp	8	8-15 deg Deadrise

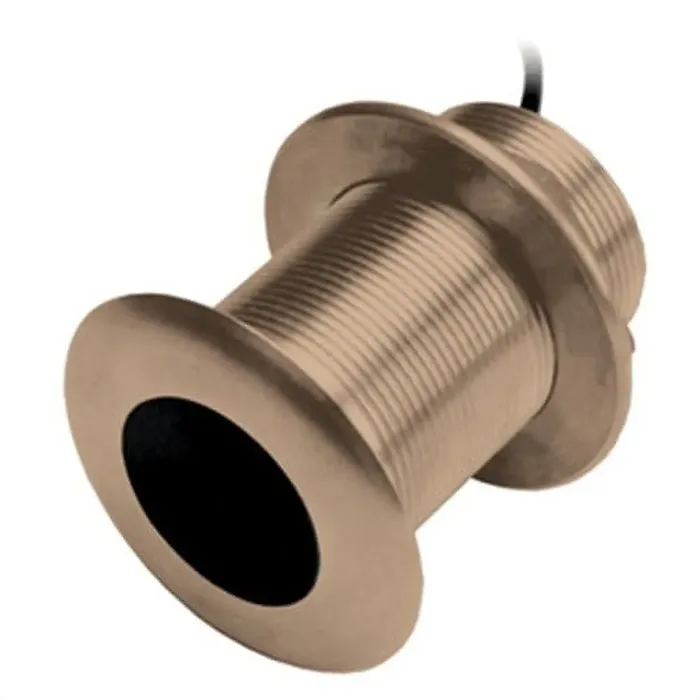

Airmar B75M
w/12° Tilt
600W

Flush-mounted bronze housing,tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block.
This broadband transducer is designed to allow both traditional and Spread Spectrum scanning when used with a compatible sonar like the GSD 26. It features a bronze, thru-hull mount design with 12 degree tilt and provides both depth and temperature data to your Garmin Marine Network


Max Depth - 800'
Suppoarted Deadrise/Transom Angles - 6-15° Deadrise
